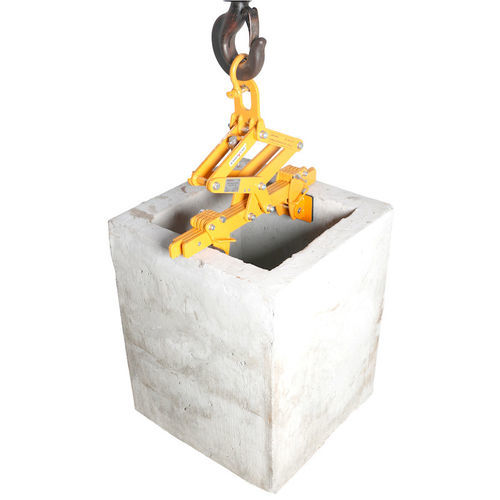

Drum lifting clamp AVBC-600

for building materialscylinderstone

Overview
The AVBC-600 Block Clamp is a mechanical lifter engineered to grip and transport concrete blocks, stone blocks, cylindrical and irregular items (eg. tires, drums) using crane or hoist attachments. It uses a gravity-controlled locking pin for automatic engagement on lift and smooth release on set down. Reversible, adjustable sliding pads allow external or internal gripping of loads and adapt to varied shapes. Pads are secured by latches on both sides for stable holding during transfer. The adjustable grip range and durable rubber contact pads protect loads while enabling efficient handling in construction and industrial sites.

Key Features

• Automatic grip & release – gravity-controlled locking pin for hands-free engagement and release during lifts.
• Reversible sliding pads – flip-capable pads to grip externally or internally for different shapes.
• Adjustable grip range – sliding mechanism adapts to common block sizes.
• Locking latches – latches on each pad to prevent shifting under load.
• Lifting eye for hook – designed for crane/hoist hook attachment.
• Durable rubber pads – high-friction, wear-resistant pads to protect the load.

Specifications
Metric | Imperial
Grip range: 100 - 600 mm | 4" – 24"
Working load limit (WLL): 1,200 kg | 2,646 lb
Net weight: 50 kg | 110 lb
Gross weight: 55 kg | 121 lb
Packaging dimensions: L.840 x W.220 x H.490 mm | 33" x 8.7" x 19.3"

Applications

• Handling concrete and cement blocks on building sites
• Loading/unloading stone blocks, drums and cylindrical materials
• Integration with cranes, hoists and forklifts for workshop or yard use

Model & Technical Details

• Model: AVBC-600 (Product code: AVBC-600)
• Gravity-controlled locking mechanism for automatic grip and release
• Reversible, adjustable sliding pads with locking latches
• Designed for quick hook attachment via lifting eye
• Finish: durable powder-coated yellow; protective rubber contact pads
