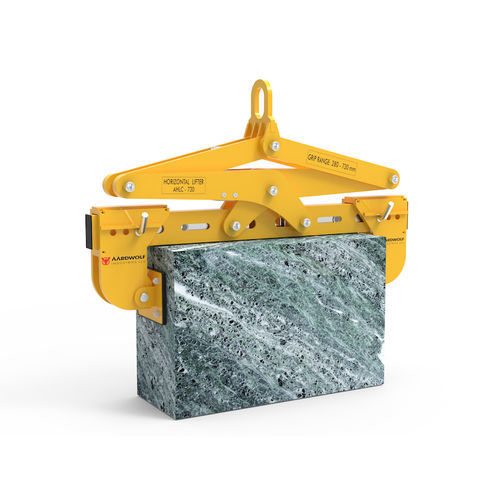

Concrete slab lifting clamp AHLC-730

stoneslabblock

General description of the Horizontal Stone Lifting Clamp
The Horizontal Stone Lifting Clamp AHLC-730 is engineered for safe, efficient horizontal handling of concrete blocks and natural stone. It is compatible with crane hooks and forklift boom attachments and uses a gravity-actuated locking mechanism that engages on lift and releases on set-down. Replaceable, high-friction polyurethane pads protect the load surface while providing a secure grip. Optional rotating pad and limit-stop upgrades improve manoeuvrability and positioning accuracy for precision lifts.

Key features of the Horizontal Stone Lifting Clamp

• Adjustable grip range: 280–730 mm to accommodate a variety of block sizes
• Working load limit (WLL): 1500 kg for heavy slabs and blocks
• Replaceable high-friction polyurethane gripping pads to minimise surface damage
• Automatic gravity-powered lock and release for faster cycles and reduced manual handling
• Lifting eye for direct crane hook integration
• Optional rotating pad and limit stop for controlled rotation and precise positioning

Specifications of the AHLC-730
Metric | Imperial
Grip range | 280 - 730 mm | 11" – 28.7"
Working load limit | 1500 kg | 3307 lbs
Net weight | 112 kg | 247 lbs
Gross weight | 123 kg | 271 lbs
Packaging dimensions | L 1410 x W 530 x H 330 mm | 55.5" x 20.9" x 13"

Why choose the Horizontal Stone Lifting Clamp?

• Optimised for efficiency: gravity-actuated auto-lock/release reduces manual handling and accelerates lift cycles
• Designed to meet industry safety standards: Machinery Directive 2006/42/EC and Australian Standard 4991-2004
• Durable design with replaceable pads for long service life
• Compact footprint ideal for congested sites, warehouses and confined spaces
• Versatile across construction, stone processing and industrial lifting applications
• Supplied with a 12-month manufacturer's warranty and technical support

Technical characteristics / specifications

• Model: AHLC-730
• Grip range: 280 - 730 mm (11" – 28.7")
• Working load limit (WLL): 1500 kg (3307 lbs)
• Net weight: 112 kg (247 lbs)
• Gross weight: 123 kg (271 lbs)
• Packaging dimensions: 1410 x 530 x 330 mm (55.5" x 20.9" x 13")
• Replaceable high-friction polyurethane gripping pads
• Automatic gravity-powered lock and release mechanism
• Optional rotating pad and limit stop for controlled rotation and precision positioning
• Lifting eye for crane hook integration
• Standards: Machinery Directive 2006/42/EC; Australian Standard 4991-2004
• 12-month manufacturer warranty
