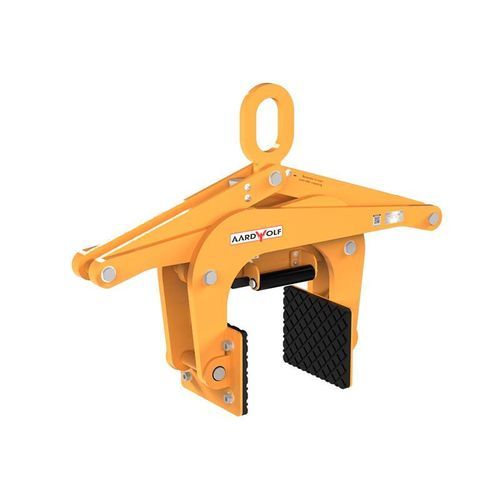

Concrete slab lifting clamp ASL200

stoneverticalautomatic

General
The Aardwolf Scissor Clamp Lifter ASL200 is designed for safe vertical lifting of stone, concrete and similar heavy materials in construction, fabrication and landscaping applications. The gravity-controlled auto-locking mechanism engages automatically on lift and releases on set-down, avoiding manual intervention. Replaceable high-friction rubber pads and a rubber-lined center rest pad protect material surfaces and edges during handling. Built in heavy-duty steel with a powder-coated safety yellow finish, the ASL200 is suitable for both workshop and site use.

Features

• Gravity-controlled auto-locking system for hands-free grip and release
• Replaceable high-friction rubber pads; rubber-lined center rest pad to prevent chipping
• Side rollers for precise load centering and edge protection
• Central crane hook for quick crane or forklift attachment
• Heavy-duty steel construction with powder-coated safety yellow finish

Optional Extra
Short chain and shackle.

Specifications
Metric — Imperial
Grip range: 50 - 200 mm — 2" – 8"
Working load limit: 1500 kg — 3307 lb
Net weight: 47 kg — 104 lb
Gross weight: 50 kg — 110 lb
Packaging dimensions: L.820 x W.230 x H.450 mm — 32.3" x 9.1" x 17.7"

Technical specifications

• Model: ASL200
• Grip range: 50 - 200 mm (2" – 8")
• Working load limit: 1500 kg (3307 lb)
• Net weight: 47 kg (104 lb)
• Gross weight: 50 kg (110 lb)
• Packaging dimensions: 820 x 230 x 450 mm (32.3" x 9.1" x 17.7")
• Construction: Heavy-duty steel with powder-coated safety yellow finish
• Pads: Replaceable high-friction rubber pads; rubber-lined center rest pad
• Mechanism: Gravity-controlled auto-locking
• Extras: Optional short chain and shackle
