Concrete slab lifting clamp ASL450

for slabsstoneslab

General

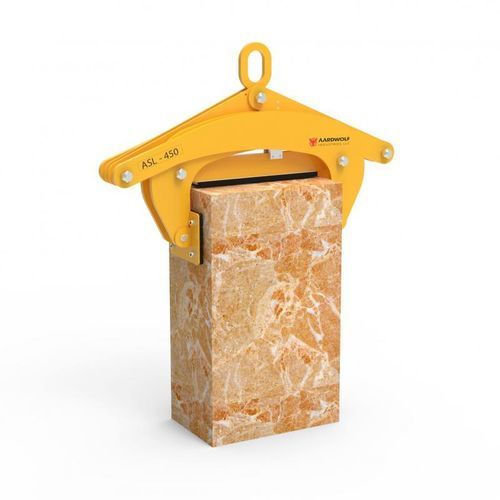

The Aardwolf Scissor Clamp Lifter ASL450 is a heavy-duty slab lifter engineered for safe vertical lifting of stone, concrete and similar heavy materials in construction, fabrication and landscaping environments. Product code: ASL450. The gravity-controlled auto-locking mechanism engages on lift and releases on set-down, enabling hands-free operation. Replaceable high-friction rubber contact pads protect material surfaces from chips and scratches. The unit includes a rubber-lined centre rest pad to protect stone edges and corners. Constructed from steel with a powder-coated safety yellow finish, the ASL450 provides a grip range of 300–450 mm and the working load limits shown below.

Features

• Gravity-controlled auto-locking system for automatic grip on lift and release on set-down
• Replaceable high-friction rubber contact pads to protect material surfaces
• Side rollers for precise load centering and edge protection
• Central crane hook for fast crane or forklift attachment
• Heavy-duty steel construction with powder-coated safety yellow finish
• Optional extra: short chain and shackle

Specifications (as presented)
Metric / Imperial
Grip range: 300 - 450 mm / 12 in - 18 in
Working load limit (WLL): 2000 kg / 4408 lb
Net weight: 85 kg / 187 lb
Gross weight: 94 kg / 207 lb
Packaging dimensions: L 1060 x W 250 x H 680 mm / 41.7 in x 9.8 in x 26.7 in

• Product code: ASL450
• Grip range: 300 - 450 mm (12 - 18 in)
• Working load limit (WLL): 2000 kg (4408 lb)
• Net weight: 85 kg (187 lb)
• Gross weight: 94 kg (207 lb)
• Packaging dimensions: 1060 x 250 x 680 mm (41.7 x 9.8 x 26.7 in)
• Pads: replaceable high-friction rubber
• Mechanism: gravity-controlled auto-locking/unlocking
• Finish: powder-coated safety yellow

Notes
Some sections of the original documentation reference a different imperial value (up to 3307 lb). The official specification table and the product code ASL450 list a working load limit of 2000 kg (4408 lb).
