Drum lifting clamp AVBC-1100

cylinderstoneblock

General

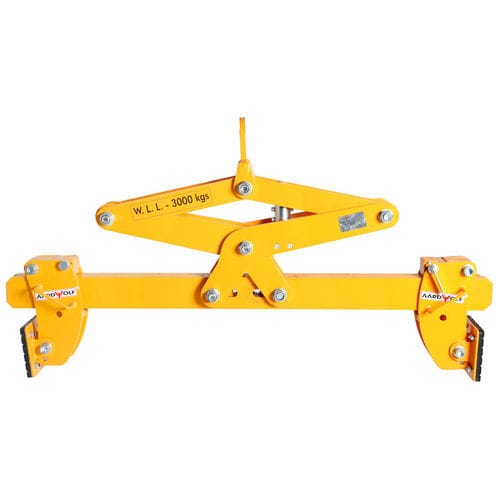

The Versa Block Clamp is a lifting clamp engineered to pick up and move concrete blocks, stone blocks, rubber tires, drums and similar heavy items. It uses adjustable sliding pads locked by a latch on each side to secure variable widths. Interchangeable and reversible jaws allow gripping from exterior surfaces or internal contact depending on the load geometry.

Features

• Adjustable sliding pads with latch locks for secure positioning.
• Interchangeable/reversible jaws to handle square, cylindrical and irregular shapes.
• Automatic grip and release mechanism to streamline handling operations.
• Designed for crane or hoist attachment via lifting eye; compatible with common rigging methods.

Specifications
Metric | Imperial
Grip range: 150 - 1100 mm | 6" - 43.3"
Working load limit: 3000 kg | 6614 lb
Net weight: 161 kg | 355 lb
Gross weight: 175 kg | 386 lb
Packaging dimensions: L1500 x W570 x H360 mm | 59" x 22" x 14.2"

Technical specifications

• Grip range: 150 - 1100 mm (6" - 43.3").
• Working load limit (WLL): 3000 kg (6614 lb).
• Net weight: 161 kg (355 lb).
• Gross weight: 175 kg (386 lb).
• Packaging: L1500 x W570 x H360 mm (59" x 22" x 14.2").
• Adjustable sliding pads with latch locks on each side.
• Interchangeable and reversible jaws for exterior or internal gripping.
• Automatic grip and release mechanism for faster cycle times.
