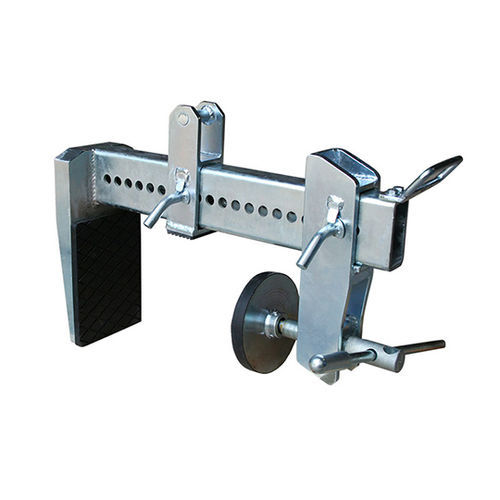

Slab lifting clamp GPM1000

stoneslabvertical

Overview
Compact clamp designed to lift and position stone monuments. Attaches to standard lifting equipment and provides surface protection through rubber-lined jaws. Jaw position and centre of gravity are adjustable using locking pins for controlled handling.

Applications

• Safe handling and placement of tombstones, memorial slabs and similar stone elements
• Use with cranes, hoists or other lifting devices
• Suitable for on-site installation, renovation and relocation work

Specifications
Metric | Imperial
Grip range: 0 - 407 mm | 0 - 16"
Max. jaw opening: 0 - 430 mm | 0 - 17"
Working load limit (WLL): 1000 kg | 2204 lb
Net weight: 33 kg | 73 lb
Gross weight: 36 kg | 79 lb
Packaging dimensions: L.660 x W.200 x H.400 mm | 26" x 7.9" x 15.7"

Technical features

• Product code: GPM1000
• Model: Monument lifting clamp
• Grip range 0 - 407 mm; max jaw opening 0 - 430 mm
• Working load limit: 1000 kg (2204 lb)
• Rubber-lined jaws to protect stone surfaces
• Adjustable jaw position and centre of gravity via locking pins
• Compact profile for placement in confined spaces
• Compatible with standard lifting devices
