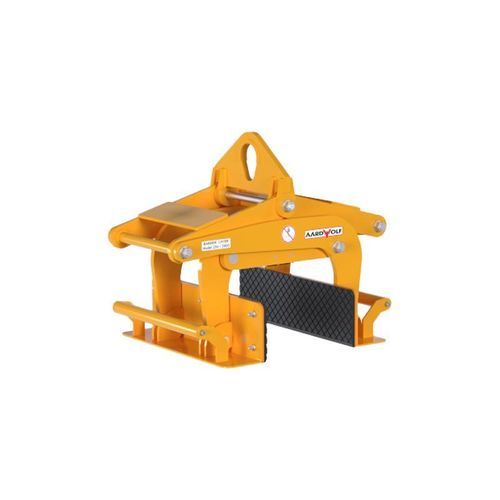

Concrete slab lifting clamp ABL255-3000

for slabsstoneslab

The Aardwolf Barrier Lifter ABL255-2000 is a heavy-duty lifting clamp designed for the safe and efficient handling of concrete barriers, granite slabs, sandstone blocks and other heavy rigid materials.
With a 2,000 kg working load limit and a 100–255 mm grip range, the ABL255-2000 is suitable for construction sites, precast concrete facilities, stone processing operations and landscaping applications.
The gravity-controlled clamping mechanism opens when the lifter is set down and closes automatically when the load is lifted. An automatic locking and unlocking system simplifies repetitive lifting operations without requiring an external power source for the clamping action.
The contact surfaces feature vulcanized rubber pads to provide secure gripping while helping protect the material. A rubber-lined protective bar further reduces the risk of chipping during lifting, moving and positioning.The Aardwolf Barrier Lifter ABL255-2000 is a heavy-duty lifting clamp designed for the safe and efficient handling of concrete barriers, granite slabs, sandstone blocks and other heavy rigid materials.
With a 2,000 kg working load limit and a 100–255 mm grip range, the ABL255-2000 is suitable for construction sites, precast concrete facilities, stone processing operations and landscaping applications.
The gravity-controlled clamping mechanism opens when the lifter is set down and closes automatically when the load is lifted. An automatic locking and unlocking system simplifies repetitive lifting operations without requiring an external power source for the clamping action.
The contact surfaces feature vulcanized rubber pads to provide secure gripping while helping protect the material. A rubber-lined protective bar further reduces the risk of chipping during lifting, moving and positioning.The Aardwolf Barrier Lifter ABL255-2000 is a heavy-duty lifting clamp designed for the safe and efficient handling of concrete barriers, granite slabs, sandstone blocks and other heavy rigid materials.
With a 2,000 kg working load limit and a 100–255 mm grip range, the ABL255-2000 is suitable for construction sites, precast concrete facilities, stone processing operations and landscaping applications.
The gravity-controlled clamping mechanism opens when the lifter is set down and closes automatically when the load is lifted. An automatic locking and unlocking system simplifies repetitive lifting operations without requiring an external power source for the clamping action.
The contact surfaces feature vulcanized rubber pads to provide secure gripping while helping protect the material. A rubber-lined protective bar further reduces the risk of chipping during lifting, moving and positioning.

Features

• Auto locks and unlocks for secure handling
• Vulcanized rubber pads to protect material surfaces
• Rubber-lined protective bar prevents chipping

Specifications
Metric | Imperial
Grip range: 100 - 255 mm | 3.9 - 10 in
Working load limit (WLL): 2000 kg | 4410 lb
Net weight: 78 kg | 172 lb
Gross weight: 97 kg | 213.8 lb
Packaging dimensions: 750 x 520 x 660 mm | 29.5 x 20.5 x 26 in

Technical details

• Model: ABL255-2000
• Contact surface protected by rubber covering the clamp
• Gravity-controlled clamp: opens at rest, closes when lifted
• Auto-locking/unlocking mechanism
• Vulcanized rubber pads
• Application: lifting and moving stone slabs and concrete barriers for construction and landscaping
