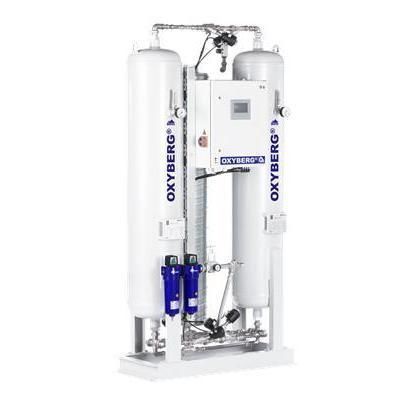

High-concentration oxygen generator OXYBERG® 500

agricultureindustrialfor biogas plant

Product information
Product No.: 1020100500
Oxygen capacity: up to 2.1 Nm³/h (1.5 Nm³/h at 95%)
Oxygen purity: 90–95%
Generation technology: PSA (pressure swing adsorption)
Design: 24/7 continuous-duty, OXYBERG® high-capacity series

Performance table
Purity: 90% | 93% | 94% | 95%
O2 (Nm³/h): 2.1 | 1.7 | 1.6 | 1.5
Compressed air (Nm³/h): 23.1 | 18.7 | 17.6 | 16.5

Application
OXYBERG® oxygen generators supply reliable on-site oxygen for biogas and biomethane production, enabling controlled aeration and biological desulfurization in anaerobic digesters and helping to optimize gas yield and process stability in agricultural and industrial biogas plants.

Downloads
Technical data sheet and certificates available as PDF (see Downloads tab on product page).

Technical specifications

• Model: OXYBERG® 500
• Part No.: 1020100500
• Oxygen capacity (95%): 1.5 Nm³/h
• Oxygen capacity (93%): 1.7 Nm³/h
• Maximum stated capacity: up to 2.1 Nm³/h
• Oxygen purity range: 90–95%
• Technology: PSA
• Dimensions (L x W x H): 610 x 870 x 1730 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight (technical): 160 kg
• Page meta weight: 175 kg
• Noise level: 55–85 dB(A)
• Ambient temperature range: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration: 0.01 µm (standard)
• Inlet active carbon filter (optional): 0.003 µm
• Outlet filtration (optional): 3–5 µm
• Reference conditions: 25 °C, 0 m altitude, 1.0133 bar, 70% RH
• Notes: Consult manufacturer for performance under other conditions. Optional components marked.
