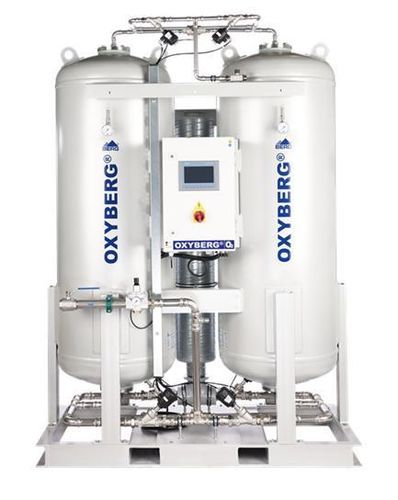

Medical oxygen generator OXYBERG® 3000

for water treatmentagricultureindustrial

Product information
Product No.: 1020103000
Oxygen Capacity: Up to 165.9 Nm³/h
Oxygen Purity: 90–95%
Generation Technology: PSA
24/7 continuous-duty system design, OXYBERG® HIGH-CAPACITY SERIES

Oxygen Generator OXYBERG® 3000
Performance table
Purity: 90% | 93% | 94% | 95%
O2 Nm³/h: 165.9 | 153.9 | 148.8 | 144.6
Comp. air Nm³/h: 1824.9 | 1692.9 | 1636.8 | 1590.6

Applications

• On-site oxygen generation and supplementation; improvement of oxygen concentrator performance
• Hospitals and medical use: medical oxygen concentrators, mobile oxygen supply, replacement of medical oxygen cylinders
• Industrial processes: paper and textile mills, urban wastewater treatment, packaging and drinking water production
• Food and dairy oxygenation processes
• Animal husbandry and related industries: poultry farms, dried fruit and flour production

Additional information
OXYBERG® 3000 systems are engineered to deliver the required flow, pressure and purity for continuous industrial and medical applications. Designed for reliable on-site oxygen supply where high capacity and consistent purity are needed.

Technical characteristics / specifications

• Model: OXYBERG® 3000
• Part No.: 1020103000
• Oxygen capacity (90%): 165.9 Nm³/h
• Capacity (93%): 153.9 Nm³/h
• Capacity (94%): 148.8 Nm³/h
• Capacity (95%): 144.6 Nm³/h
• Dimensions (L x W x H): 3250 x 2100 x 2950 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight: 11,200 kg
• Noise level: 55 max – 85 dB(A)
• Ambient temperature: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration: 0.01 micron
• Inlet filtration (activated carbon filter, optional): 0.003 micron
• Outlet filtration: 3 to 5 micron
• Reference temperature: 25 °C
• Reference altitude: 0 m
• Reference pressure: 1.0133 bar
• Reference relative humidity: 70%
