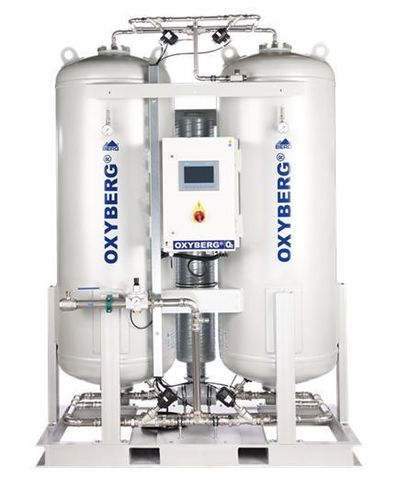

Industrial oxygen generator OXYBERG® 4000

PSApressure swing adsorptionon site

Overview
Product reference: 1020104000
Oxygen capacity: up to 197.4 Nm³/h
Oxygen purity: 90–95%
Generation technology: PSA
Designed for continuous 24/7 operation, OXYBERG® high-capacity series

Performance table (extract)
Purity (%) | O2 Nm³/h | Comp. air Nm³/h
90% | 197.4 | 2,171.4
93% | 186.3 | 2,049.3
94% | 184.2 | 2,026.2
95% | 179.4 | 1,973.4

Additional information
The OXYBERG® 4000 generator uses PSA technology to produce oxygen on-site continuously with selectable purity between 90% and 95%. It belongs to the OXYBERG® high-capacity series intended for installations with high oxygen demand. Optional inlet fine filters and activated carbon filters, as well as outlet filtration options, are available.

Technical features / specifications

• Article number: 1020104000
• Capacity (95%): 179.4 Nm³/h
• Capacity (93%): 186.3 Nm³/h
• Capacity (90%): 197.4 Nm³/h
• Dimensions (L x W x H): 3600 x 2250 x 2950 mm
• Max allowable pressure: 11 bar
• Operating pressure: 7 bar
• Weight: 13440 kg
• Noise level: 55 max 85 dB(A)
• Ambient operating temperature: +5 to +40 °C
• Electrical connection: 230 V, 50 Hz; 110 V, 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Fine filter (inlet): 0.01 micron (optional)
• Activated carbon filter (inlet): 0.003 micron (optional)
• Fine filter (outlet): 3–5 micron (optional)
• Reference temperature: 25 °C
• Reference altitude: 0 m
• Reference atmospheric pressure: 1.0133 bar
• Reference relative humidity: 70%
