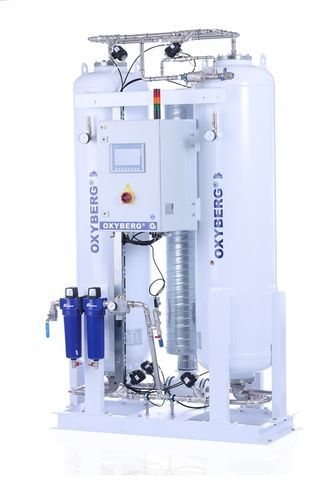

High-purity oxygen generator OXYBERG® 1300

high-concentrationmedicalindustrial

Product information
Product No.: 1020101300
Oxygen capacity: up to 24.8 Nm³/h
Oxygen purity: 90–95%
Generation technology: PSA
24/7 continuous-duty system design, OXYBERG® HIGH-CAPACITY SERIES

Performance table
Purity: 90% | 93% | 94% | 95%
O2 (Nm³/h): 24.8 | 22.1 | 21.1 | 20.3
Compressed air (Nm³/h): 272.8 | 243.1 | 232.1 | 223.3

Applications

• On-site oxygen supply for glass production to improve combustion efficiency, melting performance and throughput
• Medical and industrial processes that require high-purity oxygen (90–95%)

Filters

• Inlet fine filter: 0.01 micron (standard)
• Inlet activated carbon filter: 0.003 micron (optional)
• Outlet fine filter: 3–5 micron (standard)

Technical specifications

• Model: OXYBERG® 1300
• Part No.: 1020101300
• Oxygen capacity (95%): 20.3 Nm³/h
• Oxygen capacity (93%): 22.1 Nm³/h
• Oxygen capacity (90%): 24.8 Nm³/h
• Dimensions (L x W x H): 820 x 1650 x 2360 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight: 1390 kg
• Declared weight (diagram): 1440 kg
• Noise level: 55 – max 85 dB(A)
• Ambient temperature: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration: 0.01 micron (standard)
• Inlet filtration (activated carbon, optional): 0.003 micron
• Outlet filtration: 3–5 micron
• Reference environmental conditions: 20 °C, 1.0133 bar, 70% humidity, 0 m above sea level
• Notes: Optional items available as indicated in product documentation
