High-purity oxygen generator OXYBERG® 1100

for aquaculturePSApressure swing adsorption

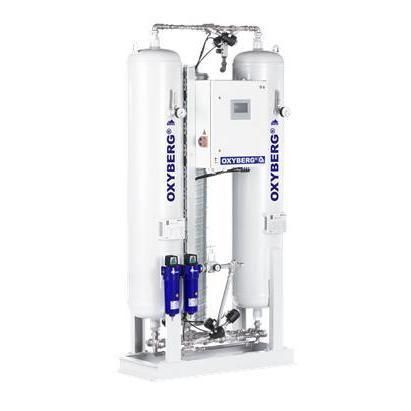

OXYBERG® 1100 oxygen generator
Product reference: 1020101100
Technology: PSA (Pressure Swing Adsorption) designed for continuous 24/7 operation. OXYBERG® high-capacity series.

Main performance
Maximum oxygen capacity: up to 13.8 Nm³/h
Available oxygen purity: 90–95%

Purity / flow table
Purity: 90% | 93% | 94% | 95%
O2 (Nm³/h): 13.8 | 12.8 | 12.4 | 12.1
Compressed air (Nm³/h): 151.8 | 140.8 | 136.4 | 133.1

Application - fish farming and aquaculture
The BERG OXYBERG 1100 supplies continuous, high-purity oxygen for aquaculture systems and intensive fish farming. It helps maintain adequate dissolved oxygen levels to reduce stress and mortality and to support optimal growth and productivity.

Advantages

• On-site oxygen production with high purity (90–95%).
• Designed for continuous 24/7 operation (high-capacity series).
• PSA technology proven for reliable, continuous performance.
• Optional inlet/outlet filters available (fine and activated carbon filters).

Features / technical specifications

• Product reference: 1020101100
• Model: OXYBERG® 1100
• Oxygen capacity (95%): 12.1 Nm³/h
• Oxygen capacity (93%): 12.8 Nm³/h
• Maximum indicated oxygen capacity: up to 13.8 Nm³/h
• Compressed air required (by purity): 151.8 / 140.8 / 136.4 / 133.1 Nm³/h
• Generation technology: PSA
• Dimensions (L x W x H): 730 x 1330 x 2230 mm
• Maximum allowable pressure: 11 bar
• Operating pressure: 7 bar
• Weight: 930 kg
• Weight (page metadata): 960 kg
• Noise level: 55 max 85 dB(A)
• Operating ambient temperature: +5 to +40 °C
• Reference temperature*: 25 °C
• Reference altitude*: 0 m
• Reference atmospheric pressure*: 1.0133 bar
• Reference relative humidity*: 70%
• Electrical connection: 230 V, 50 Hz and 110 V, 60 Hz
• Power consumption: 150 W
• Protection rating: IP54
• Optional inlet fine filter: 0.01 microns
• Optional inlet activated carbon filter: 0.003 microns
• Optional outlet fine filter: 3–5 microns
• Performance note: values given for reference conditions; consult us for performance under other specific conditions.
