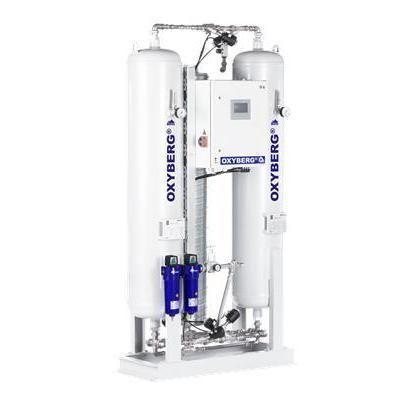

High-concentration oxygen generator OXYBERG® 600

for workshopsindustrialPSA

Product information
Product No.: 1020100600
Model: OXYBERG® 600
Generation technology: PSA
Oxygen capacity: up to 2.9 Nm³/h (dependent on purity)
Oxygen purity: 90–95%
Design: 24/7 continuous-duty, OXYBERG® HIGH-CAPACITY SERIES

Performance table
Purity: 90% | 93% | 94% | 95%
O2 Nm³/h: 2.9 | 2.4 | 2.3 | 2.2
Compressed air Nm³/h: 31.9 | 26.4 | 25.3 | 24.2

Application
Supply of on-site oxygen for small glass factories and workshops. Suitable for processes requiring a stable, continuous oxygen flow at selectable purity levels.

Technical specifications

• Model: OXYBERG® 600
• Product No.: 1020100600
• Oxygen capacity (95%): 2.2 Nm³/h
• Oxygen capacity (93%): 2.4 Nm³/h
• Maximum indicated capacity: up to 2.9 Nm³/h
• Dimensions (L x W x H): 630 x 930 x 1780 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight (technical data): 247 kg
• Page metadata weight: 310 kg
• Noise level: 55 max – 85 dB(A)
• Ambient operating temperature: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration: 0.01 micron (standard)
• Inlet filtration (active carbon filter): 0.003 micron (optional)
• Outlet filtration: 3–5 micron
• Reference temperature for data: 25 °C
• Reference altitude for data: 0 m above sea level
• Reference pressure for data: 1.0133 bar
• Reference humidity for data: 70%
• Note: Performance for other conditions is not provided in the table; optional items are marked as such.

Options and documentation

• Optional inlet filters and activated carbon filter
• Outlet filtration options
• Technical datasheet and PDF documentation available on request
