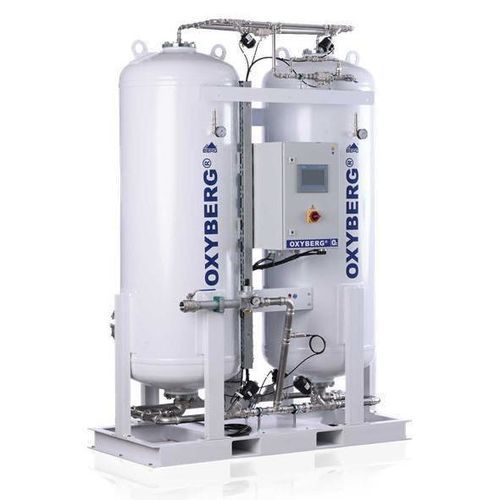

High-purity oxygen generator OXYBERG® 1500

medicalfor hospitalPSA

Product information

• Product No.: 1020101500
• Oxygen Capacity: up to 44.6 Nm³/h
• Oxygen Purity: 90–95%
• Generation Technology: PSA (Pressure Swing Adsorption)
• Designed for 24/7 continuous duty — OXYBERG® High-Capacity Series

Purity / Capacity
Purity | 90% | 93% | 94% | 95%
O2 Nm3/h | 44.6 | 41.6 | 40.5 | 39.1
Comp. air Nm3/h | 490.6 | 457.6 | 445.5 | 430.1

Overview
BERG OXYBERG® oxygen generators deliver up to 95% medical-grade oxygen on-site to ensure a reliable, continuous supply for hospitals, clinics and care facilities. The system is intended for applications requiring autonomous oxygen production with controlled purity and adjustable capacity.

Technical data (selected)
Oxygen Generator: OXYBERG® 1500
Part No.: 1020101500
Capacity (95%): 39.1 Nm³/h
Capacity (93%): 41.6 Nm³/h
Dimensions (L x W x H): 1040 x 1950 x 2680 mm
Design pressure: 11 bar
Operating pressure: 7 bar
Net weight: approx. 2800 kg
Noise level: 55 – max 85 dB(A)
Ambient temperature: +5 to +40 °C
Electrical connection: 230 V 50 Hz / 110 V 60 Hz
Power consumption: 150 W
Safety class: IP54
Inlet filtration: 0.01 µm (standard); activated carbon inlet filtration: 0.003 µm (optional)
Outlet filtration: 3–5 µm
Reference conditions: 25 °C, 0 m above sea level, 1.0133 bar, 70% RH (consult manufacturer for other conditions)

Features / Technical specifications

• Model: OXYBERG® 1500
• Part Number: 1020101500
• PSA generation technology for on-site oxygen production
• Adjustable purity range: 90%–95%
• Capacity up to 44.6 Nm³/h depending on purity
• Compressed air requirement examples: up to 490.6 Nm³/h (depends on purity)
• Dimensions (L x W x H): 1040 x 1950 x 2680 mm
• Design pressure 11 bar / Operating pressure 7 bar
• Net weight approx. 2800 kg
• Noise level 55 – 85 dB(A)
• Operating ambient temperature +5 to +40 °C
• Electrical options: 230 V 50 Hz or 110 V 60 Hz
• Power consumption: 150 W
• Protection class IP54
• Inlet/outlet filtration options for clinical and industrial environments
• Reference performance conditions stated — contact manufacturer for site-specific performance data
