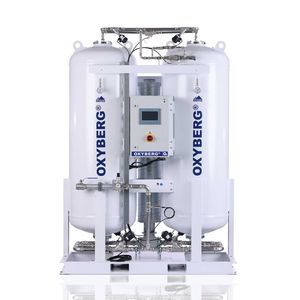

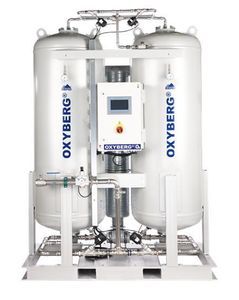

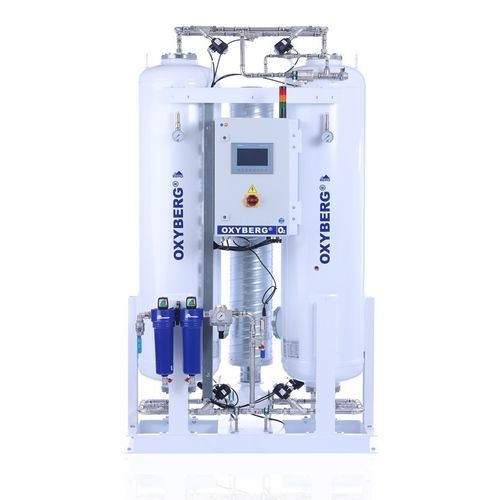

High-purity oxygen generator OXYBERG® 1200

industrialfor the food industryPSA

Product information
Product no.: 1020101200
Oxygen capacity: up to 18.9 Nm³/h
Oxygen purity: 90–95%
Generation technology: PSA (Pressure Swing Adsorption)
Designed for 24/7 continuous duty — OXYBERG® HIGH-CAPACITY SERIES

Performance (O2 output and required compressed air at different purities)
Purity: 90% | 93% | 94% | 95%
O2 Nm3/h: 18.9 | 17.4 | 16.8 | 15.9
Compressed air Nm3/h: 207.9 | 191.4 | 184.8 | 174.9

Description
The BERG OXYBERG 1200 provides a reliable on-site oxygen supply for food production, processing, packaging and storage applications. PSA technology delivers selectable purity levels to match process requirements and is engineered for continuous industrial operation. Optional inlet fine filtration, activated carbon pre-filtration and outlet filtration are available to meet hygiene and product-contact specifications.

Technical data (excerpt)
Product no.: 1020101200
Capacity (95%): 15.9 Nm³/h
Capacity (93%): 17.4 Nm³/h
Dimensions (L x W x H): 730 x 1500 x 2330 mm
Design pressure: 11 bar
Operating pressure: 7 bar
Net weight: 1030 kg
Noise level: typically 55 dB(A), max 85 dB(A)
Ambient temperature: +5 to +40 °C
Electrical connection: 230 V 50 Hz / 110 V 60 Hz
Power consumption: 150 W
Protection class: IP54
Inlet filtration: 0.01 micron (standard); active carbon 0.003 micron (optional)
Outlet filtration: 3–5 micron
Reference conditions: 20 °C, 0 m altitude, 1.0133 bar, 70% RH

Characteristics / technical specifications

• Model: OXYBERG® 1200
• Product number (SKU): 1020101200
• Generation technology: PSA (Pressure Swing Adsorption)
• Oxygen purity range: 90%–95%
• Maximum oxygen capacity: up to 18.9 Nm³/h (at 90% purity)
• Capacity at 95% purity: 15.9 Nm³/h
• Compressed air requirement: up to 207.9 Nm³/h (at 90% purity)
• Operating pressure: 7 bar (design pressure 11 bar)
• Dimensions (L x W x H): 730 x 1500 x 2330 mm
• Net weight: 1030 kg
• Noise level: typically 55 dB(A), max 85 dB(A)
• Electrical connection options: 230 V 50 Hz or 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration: 0.01 micron (standard); active carbon 0.003 micron (optional)
• Outlet filtration: 3–5 micron
• Operating ambient temperature range: +5 °C to +40 °C
• Reference conditions: temperature 20 °C, altitude 0 m, pressure 1.0133 bar, humidity 70%
• Application focus: food industry — production, processing, packaging, storage
