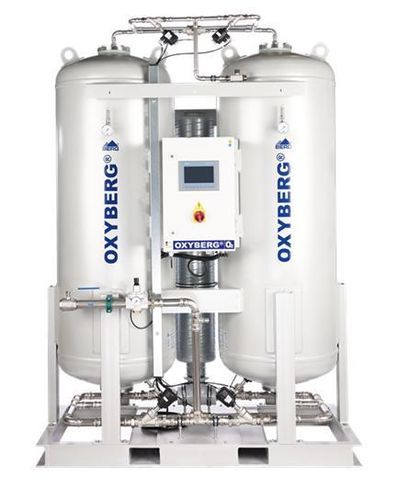

High-concentration oxygen generator OXYBERG® 1900

processfor water treatmentfor aquaculture

Product overview

• Product No.: 1020101900
• Model: OXYBERG® 1900
• Generation technology: PSA (Pressure Swing Adsorption)
• Oxygen purity: 90–95%
• Max capacity: up to 110.6 Nm³/h (depends on purity)
• Designed for continuous 24/7 operation — OXYBERG® High-Capacity series

Performance table
Purity: 90% | 93% | 94% | 95%
O2 (Nm³/h): 110.6 | 102.6 | 99.2 | 96.4
Compressed air (Nm³/h): 1,216.6 | 1,128.6 | 1,091.2 | 1,060.4

Key features

• On-site oxygen generation with controlled purity levels between 90% and 95% for process integration.
• Pressure Swing Adsorption (PSA) technology enabling continuous, energy-efficient oxygen production for industrial applications.
• Modular/high-capacity design suitable for integration into production lines; optional inlet/outlet filtration and carbon filters available.

Applications

• Continuous on-site oxygen supply for industrial and process applications (oxidation processes, water treatment, aquaculture, food processing, bottling and other process industries).
• Installations requiring medium-to-high oxygen flow with controlled purity for process optimisation.

Technical specifications

• Product No.: 1020101900
• Model: OXYBERG® 1900
• Capacity (95%): 96.4 Nm³/h
• Capacity (93%): 102.6 Nm³/h
• Overall capacity (max indicated): up to 110.6 Nm³/h
• Dimensions (L x W x H): 2150 x 2100 x 2950 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight: 5950 kg
• Noise level: 55–85 dB(A)
• Ambient temperature: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration: 0.01 micron (standard); active carbon filter 0.003 micron (optional)
• Outlet filtration (optional): 3–5 micron
• Reference conditions for performance: 25 °C; 0 m asl; 1.0133 bar; 70% RH
• Notes: consult manufacturer for performance under other specific conditions; optional features available.
