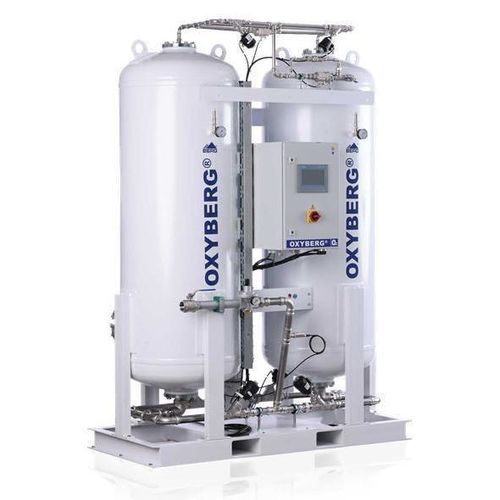

Medical oxygen generator OXYBERG® 1700processindustrialfor hospital
Add to favorites
Compare this product
Characteristics
- Domain
- industrial, process, medical, for hospital
- Technology
- PSA
- Other characteristics
- high-flow
- Flow rate
Min.: 59.8 m³/h
(2,111.817 ft³/h)Max.: 65.8 m³/h
(2,323.705 ft³/h)- Output pressure
Min.: 700,000 Pa
(101.53 psi)Max.: 1,100,000 Pa
(159.54 psi)- Gas purity
Min.: 90 %
Max.: 95 %
- Power consumption
150 W
Description
Product information
Oxygen Generator OXYBERG® 1700
Purity | 90% | 93% | 94% | 95%
O2 Nm3/h | 65.8 | 62.1 | 61.4 | 59.8
Comp. air Nm3/h | 723.8 | 683.1 | 675.4 | 657.8
Application summary
Features & Highlights
Technical specifications
- Product No.: 1020101700
- Oxygen Capacity: Up to 65.8 Nm³/h
- Oxygen Purity: 90–95%
- Generation Technology: PSA
- 24/7 continuous-duty system design, OXYBERG® HIGH-CAPACITY SERIES
Oxygen Generator OXYBERG® 1700
Purity | 90% | 93% | 94% | 95%
O2 Nm3/h | 65.8 | 62.1 | 61.4 | 59.8
Comp. air Nm3/h | 723.8 | 683.1 | 675.4 | 657.8
Application summary
- Designed to supply reliable, on-demand oxygen to healthcare facilities: hospitals, clinics, emergency units and other critical medical applications.
- Also suitable for industrial and process applications requiring on-site oxygen generation and operational independence.
Features & Highlights
- PSA (Pressure Swing Adsorption) oxygen generation technology
- Adjustable oxygen purity between 90% and 95%
- Continuous 24/7 operation capability
- Designed for high-capacity, on-site oxygen production
Technical specifications
- Model: OXYBERG® 1700
- Part No.: 1020101700
- Capacity (95%): 59.8 Nm³/h
- Capacity (93%): 62.1 Nm³/h
- Maximum indicated capacity: up to 65.8 Nm³/h (varies with purity)
- Dimensions (L x W x H): 1200 x 2250 x 2950 mm
- Design pressure: 11 bar
- Operating pressure: 7 bar
- Net weight: 4550 kg
- Noise level: 55 max 85 dB(A)
- Ambient temperature range: +5 to +40 °C
- Electrical connection: 230V 50Hz / 110V 60Hz
- Power consumption: 150 W
- Safety class: IP 54
- Inlet filtration: 0.01 micron
- Inlet active carbon filter (optional): 0.003 micron
- Outlet filtration: 3 to 5 micron
- Reference temperature: 25 °C
- Reference above sea level: 0 m
- Reference pressure: 1.0133 bar
- Reference humidity: 70%
