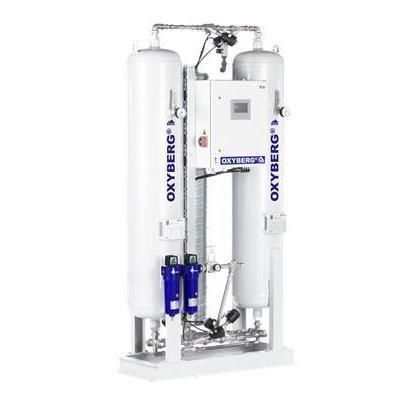

High-concentration oxygen generator OXYBERG® 1000

for water treatmentfor biogas plantfor hospital

Product information
Product No.: 1020101000
Oxygen capacity: Up to 12.4 Nm³/h (depending on purity)
Oxygen purity: 90–95%
Generation technology: PSA (Pressure Swing Adsorption)
24/7 continuous-duty system design
OXYBERG® HIGH-CAPACITY SERIES

Performance table
Purity | 90% | 93% | 94% | 95%
O2 Nm³/h | 12.4 | 11.1 | 10.5 | 10.1
Comp. air Nm³/h | 136.4 | 122.1 | 115.5 | 111.1

Overview
The BERG OXYBERG 1000 provides on-site continuous oxygen supply suitable for medical applications such as hyperbaric oxygen therapy and for industrial processes that require controlled oxygen feed. The unit is designed for continuous operation and delivers the specified oxygen purities according to operating conditions.

What is Hyperbaric Oxygen Therapy?
Hyperbaric Oxygen Therapy (HBOT) is a medical treatment in which a patient breathes pure oxygen in a pressurised environment. Increased pressure enhances oxygen uptake in the lungs and allows oxygen to reach damaged tissues via the bloodstream to support healing and help control infections. Indications include decompression sickness, non-healing wounds, carbon monoxide poisoning, certain infections and radiation injuries.

Applications and benefits

• Hyperbaric therapy: On-site PSA oxygen plants supply continuous oxygen for HBOT chambers, reducing dependence on cylinder deliveries.
• Beauty and aesthetic treatments: Provides a consistent source of oxygen for facial and cosmetic oxygen therapies.
• Industrial and process use: Applicable for aquaculture, wastewater treatment, biogas upgrading and other processes requiring controlled oxygen dosing.

Technical specifications

• Model: OXYBERG® 1000
• Product number: 1020101000
• Oxygen capacity (90%): 12.4 Nm³/h
• Oxygen capacity (93%): 11.1 Nm³/h
• Oxygen capacity (94%): 10.5 Nm³/h
• Oxygen capacity (95%): 10.1 Nm³/h
• Compressed air requirement: 136.4 / 122.1 / 115.5 / 111.1 Nm³/h (90% / 93% / 94% / 95%)
• Dimensions (L x W x H): 660 x 1180 x 2220 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight (technical data): 880 kg
• Meta weight (page metadata): 910 kg
• Noise level: 55 max – 85 dB(A)
• Ambient temperature range: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection rating: IP54
• Inlet filtration: 0.01 micron (standard)
• Inlet active carbon filtration (optional): 0.003 micron
• Outlet filtration (optional): 3–5 micron
• Reference conditions for data: 20 °C, 0 m altitude, 1.0133 bar, 70% RH *
• * Consult manufacturer for performance under other specific conditions; some items optional.
