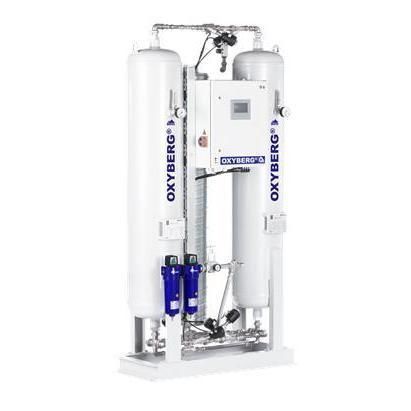

Agriculture oxygen generator OXYBERG® 700

industrialfor biogas plantPSA

Product information

• Product No.: 1020100700
• Oxygen capacity: up to 4.9 Nm³/h
• Oxygen purity: 90–95%
• Generation technology: PSA
• Design: 24/7 continuous-duty, OXYBERG® HIGH-CAPACITY SERIES

Performance table
Purity | 90% | 93% | 94% | 95%
O2 Nm³/h | 4.9 | 4.2 | 3.9 | 3.8
Comp. air Nm³/h | 53.9 | 46.2 | 42.9 | 41.8

Description / Applications
OXYBERG® 700 delivers reliable on-site oxygen for hydrogen sulphide (H2S) removal in anaerobic digesters and biogas plants. Continuous oxygen supply supports biological desulfurisation, reduces odours and corrosion, and improves digestion performance — suitable for agricultural biogas operations and related industrial installations.

Characteristics / Technical specifications

• Oxygen generator: OXYBERG® 700
• Part No.: 1020100700
• Oxygen capacity (up to): 4.9 Nm³/h (at 90% purity)
• Capacity (95%): 3.8 Nm³/h
• Capacity (93%): 4.2 Nm³/h
• Purity range: 90–95%
• Compressed air consumption (corresponding): 53.9 / 46.2 / 42.9 / 41.8 Nm³/h (for 90% / 93% / 94% / 95%)
• Dimensions (L x W x H): 650 x 950 x 1780 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight: 320 kg
• Noise level: 55 max 85 dB(A)
• Ambient temperature: +5 to +40 °C
• Electrical connection: 230V 50Hz / 110V 60Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration: 0.01 micron
• Inlet filtration (activated carbon, optional): 0.003 micron
• Outlet filtration: 3–5 micron
• Reference conditions: Temperature 25 °C; Above sea level 0 m; Pressure 1.0133 bar; Humidity 70%

Notes
Performance values given for reference conditions. Consult manufacturer for performance under other site-specific conditions and available options.
