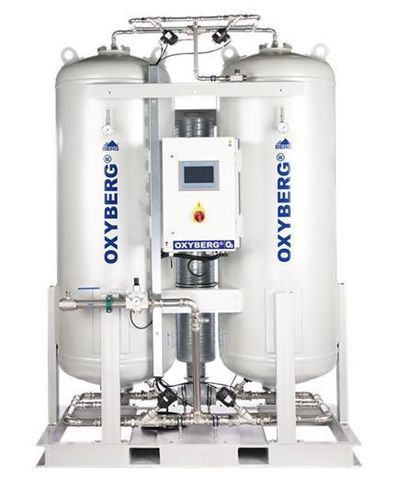

High-concentration oxygen generator OXYBERG® 2000

industrialprocessPSA

Product information — Oxygen generator OXYBERG® 2000

• Product reference: 1020102000
• Oxygen capacity: up to 131.6 Nm³/h
• Oxygen purity: 90–95%
• Generation technology: PSA
• Designed for continuous 24/7 operation (OXYBERG® high-capacity series)

Performance (extract)
Purity
90% | 93% | 94% | 95%
O2 Nm³/h
131.6 | 124.2 | 122.8 | 119.6
Comp. air Nm³/h
1,447.6 | 1,366.2 | 1,350.8 | 1,315.6


Applications
BERG OXYBERG® oxygen generators are engineered for demanding industrial and process applications. Typical uses include enhancement of oxidation and cyanidation in gold and silver extraction to increase recovery rates and process efficiency, and continuous on-site oxygen supply for various industrial processes.

Technical characteristics / specifications

• Model: OXYBERG® 2000
• Product number: 1020102000
• Capacity (95%): 119.6 Nm³/h
• Capacity (93%): 124.2 Nm³/h
• Maximum oxygen capacity (up to): 131.6 Nm³/h
• Required compressor air (corresponding): 1,447.6 / 1,366.2 / 1,350.8 / 1,315.6 Nm³/h depending on purity
• Dimensions (L x W x H): 2400 x 2250 x 2950 mm
• Maximum allowable pressure: 11 bar
• Operating pressure: 7 bar
• Weight: 7,200 kg
• Noise level: 55 max – 85 dB(A)
• Ambient operating temperature: +5 to +40 °C
• Electrical connection: 230 V, 50 Hz; 110 V, 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Fine inlet filter: 0.01 micron (optional)
• Activated carbon inlet filter: 0.003 micron (optional)
• Fine outlet filter: 3–5 microns (optional)
• Reference temperature for performance: 25 °C *
• Reference elevation: 0 m *
• Reference atmospheric pressure: 1.0133 bar *
• Reference relative humidity: 70% *
• * Values given under standard reference conditions
• ** Indicates optional filtration elements or variants

Documentation
Datasheet and technical manuals for the OXYBERG® 2000 are available in PDF format upon request.
