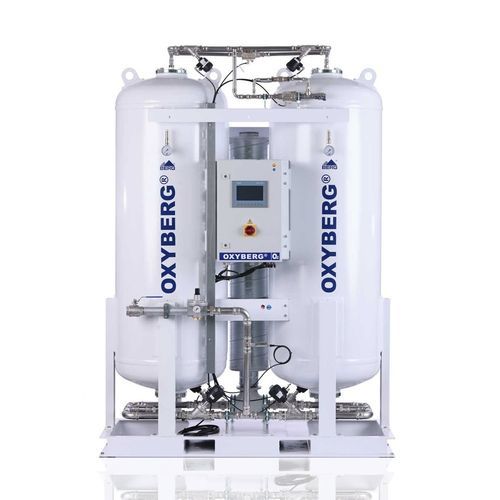

High-purity oxygen generator OXYBERG® 1600

medicalindustrialfor the pharmaceutical industry

OXYBERG® 1600 oxygen generator
Product reference: 1020101600
Oxygen capacity: up to 55.3 Nm³/h
Oxygen purity: 90–95%
Generation technology: PSA
Designed for continuous 24/7 operation, OXYBERG® high-capacity series

Performance table (excerpt)
purity | 90% | 93% | 94% | 95%
O2 Nm3/h | 55.3 | 51.3 | 49.6 | 48.2
Comp. air Nm3/h | 608.3 | 564.3 | 545.6 | 530.2

Description
PSA oxygen generators deliver a reliable, efficient and cost-effective on-site oxygen supply for hospitals and pharmaceutical facilities. Engineered for continuous medical and demanding industrial use, the OXYBERG® series produces oxygen at selectable purity levels (90–95%) with capacities adjusted according to the required purity.

Technical specifications

• Model: OXYBERG® 1600
• Product number / Ref.: 1020101600
• Oxygen capacity (by purity): up to 55.3 Nm³/h (90%); 51.3 Nm³/h (93%); 49.6 Nm³/h (94%); 48.2 Nm³/h (95%)
• Compressed air required (by purity): 608.3 Nm³/h (90%); 564.3 Nm³/h (93%); 545.6 Nm³/h (94%); 530.2 Nm³/h (95%)
• Indicated capacity (95%): 48.2 Nm³/h
• Dimensions (L x W x H): 1100 x 2100 x 2950 mm
• Maximum allowable pressure: 11 bar
• Operating pressure: 7 bar
• Weight: 3800 kg
• Noise level: 55 max – 85 dB(A)
• Ambient operating temperature range: +5 to +40 °C
• Electrical connection: 230 V, 50 Hz; 110 V, 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Fine filter (inlet): 0.01 micron (optional)
• Activated carbon filter (inlet): 0.003 micron (optional)
• Fine filter (outlet): 3–5 microns (optional)
• Reference temperature: 25 °C
• Reference elevation: 0 m
• Reference atmospheric pressure: 1.0133 bar
• Reference relative humidity: 70%
