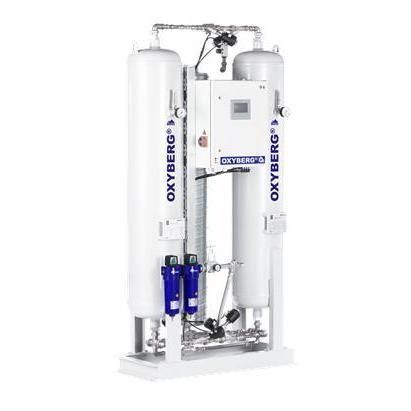

High-purity oxygen generator OXYBERG® 900

high-concentrationindustrialfor water treatment

Product information

• Product No.: 1020100900
• Oxygen Capacity: Up to 9.2 Nm³/h
• Oxygen Purity: 90–95%
• Generation Technology: PSA (Pressure Swing Adsorption)
• 24/7 continuous-duty system design
• Series: OXYBERG® HIGH-CAPACITY SERIES

Performance (Purity vs. Output)
Purity | 90% | 93% | 94% | 95%
O2 (Nm3/h) | 9.2 | 8.2 | 7.7 | 7.3
Compressed air (Nm3/h) | 101.2 | 90.2 | 84.7 | 80.3

Applications
The BERG OXYBERG 900 is designed to supply oxygen for demanding wastewater treatment processes and to produce oxygen-enriched water for industrial applications. Manufactured in Germany.

Technical specifications

• Oxygen Generator: OXYBERG® 900
• Part No.: 1020100900
• Capacity (95%): 7.3 Nm³/h
• Capacity (93%): 8.2 Nm³/h
• Maximum reported capacity: up to 9.2 Nm³/h (depending on purity)
• Dimensions (L x W x H): 630 x 1120 x 2100 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight (technical sheet): 490 kg
• Meta weight (page): 520 kg
• Noise level: 55–85 dB(A)
• Ambient temperature range: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Protection class: IP54
• Inlet filtration: 0.01 micron (standard)
• Inlet active carbon filter (optional): 0.003 micron
• Outlet filtration: 3–5 micron (optional)
• Reference conditions: 25 °C, 0 m altitude, 1.0133 bar, 70% relative humidity

Operational notes
Performance values are given for reference conditions and may vary with site-specific temperature, altitude and inlet air quality. Optional filtration and accessory configurations are available on request.
