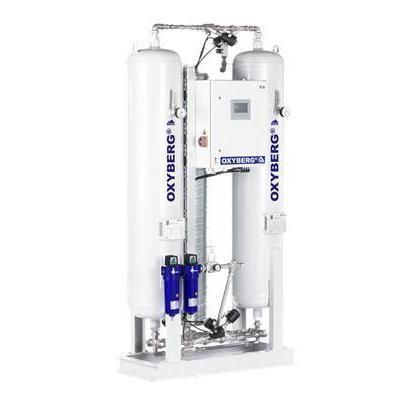

Water treatment oxygen generator OXYBERG® 800

industrialPSAon site

Product information

• Product No.: 1020100800
• Oxygen Capacity: Up to 6.1 Nm³/h
• Oxygen Purity: 90–95%
• Generation Technology: PSA
• 24/7 continuous-duty system design
• Series: OXYBERG® HIGH-CAPACITY SERIES

Performance (Purity vs. Output)
Purity | O2 (Nm³/h) | Comp. air (Nm³/h)
90% | 6.1 | 67.1
93% | 5.5 | 60.5
94% | 5.2 | 57.2
95% | 4.9 | 53.9

Overview
The BERG OXYBERG 800 provides a reliable on-site oxygen supply for wastewater treatment, supporting efficient biological oxidation, aeration and improved effluent quality. Designed for continuous industrial operation, it is suitable for processes requiring stable oxygen delivery and controlled purity levels.

Downloads / Documents

• Technical Data: Technical Data Oxygen Generator OXYBERG® 800 (PDF)

Technical specifications

• Model: OXYBERG® 800
• Part No.: 1020100800
• Capacity (95%): 4.9 Nm³/h
• Capacity (93%): 5.5 Nm³/h
• Capacity (90%): 6.1 Nm³/h
• Dimensions (L x W x H): 620 x 1020 x 1800 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight: 444 kg
• Meta weight tag: 520 kg
• Noise level: 55 max 85 dB(A)
• Ambient temperature range: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Safety class: IP54
• Inlet filtration: 0.01 micron (standard)
• Inlet filtration (active carbon filter, optional): 0.003 micron
• Outlet filtration (optional): 3 to 5 micron
• Reference temperature for performance: 25 °C*
• Reference above sea level for performance: 0 m*
• Reference pressure for performance: 1.0133 bar*
• Reference humidity for performance: 70%*
• * Consult manufacturer for performance under other specific conditions; ** Optional items where noted
