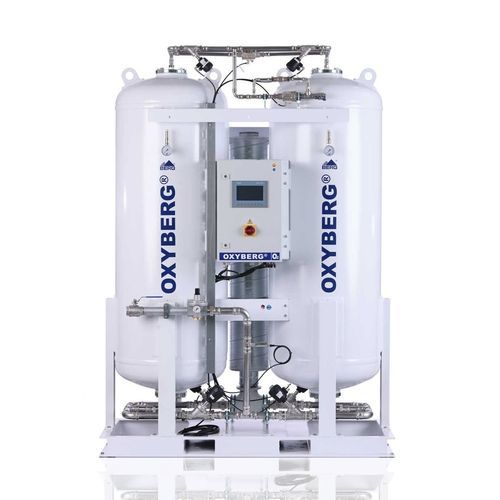

High-concentration oxygen generator OXYBERG® 1400

industrialPSA

Product information
Product No.: 1020101400
Generation Technology: PSA
Oxygen Capacity (max): Up to 33.8 Nm³/h
Oxygen Purity: 90–95%
24/7 continuous-duty system design — OXYBERG® HIGH-CAPACITY SERIES

Performance table
Purity: 90% | 93% | 94% | 95%
O2 (Nm³/h): 33.8 | 31.4 | 30.1 | 28.8
Compressed air (Nm³/h): 371.8 | 345.4 | 331.1 | 316.8

Overview / Benefits
OXYBERG® 1400 provides reliable on-site oxygen production using PSA technology. The unit supplies demand-driven oxygen for continuous and flexible operation across a wide range of industrial applications, helping to reduce operating costs, logistics and environmental impact. Compatible with oxygen purity monitoring sensors for process control.

Technical specifications

• Model: OXYBERG® 1400
• Product number: 1020101400
• Oxygen capacity (95%): 28.8 Nm³/h
• Oxygen capacity (93%): 31.4 Nm³/h
• Oxygen capacity (max reported): up to 33.8 Nm³/h
• Oxygen purity range: 90% – 95%
• Compressed air requirement (90% / 93% / 94% / 95%): 371.8 / 345.4 / 331.1 / 316.8 Nm³/h
• Dimensions (L x W x H): 930 x 1780 x 2480 mm
• Design pressure: 11 bar
• Operating pressure: 7 bar
• Net weight (technical data table): 2160 kg
• Meta weight (page metadata): 2210 kg
• Noise level: 55 max 85 dB(A)
• Ambient temperature range: +5 to +40 °C
• Electrical connection: 230 V 50 Hz / 110 V 60 Hz
• Power consumption: 150 W
• Safety class: IP54
• Inlet filtration: 0.01 micron
• Inlet filtration (activated carbon, optional): 0.003 micron
• Outlet filtration (optional): 3 to 5 micron
• Reference temperature (for performance): 25 °C*
• Reference above sea level (for performance): 0 m*
• Reference pressure (for performance): 1.0133 bar*
• Reference humidity (for performance): 70%*
• Notes: *Consult manufacturer for performance under other specific conditions. **Optional equipment
