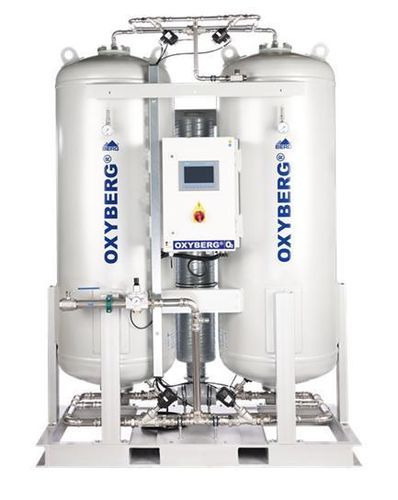

High-purity oxygen generator OXYBERG® 1800

high-concentrationmedicalindustrial

Summary

• Product reference: 1020101800
• Oxygen capacity: up to 89.2 Nm³/h
• Oxygen purity: 90–95%
• Generation technology: PSA
• Designed for continuous 24/7 operation — OXYBERG® high-capacity series

Performance by purity
purity: 90% | 93% | 94% | 95%
O2 (Nm3/h): 89.2 | 83.2 | 81.0 | 78.2
Compressed air (Nm3/h): 981.2 | 915.2 | 891.0 | 860.2

Usage and benefits
Reliable on‑demand oxygen supply for hospitals and healthcare facilities, reducing dependency on external deliveries and lowering logistic costs while ensuring continuous availability of medical oxygen. Modular design and OXYBERG® series configuration allow adaptation to varying flow-rate and purity requirements for both medical and industrial applications.

Technical features / specifications

• Commercial designation: OXYBERG® 1800
• Article number / Product ref.: 1020101800
• Capacity (95%): 78.2 Nm³/h
• Capacity (93%): 83.2 Nm³/h
• Maximum capacity (90%): up to 89.2 Nm³/h
• Dimensions (L x W x H): 1900 x 1940 x 2670 mm
• Maximum allowable pressure: 11 bar
• Operating pressure: 7 bar
• Weight: 5500 kg (table) / 5550 kg (page metadata)
• Noise level: 55 max 85 dB(A)
• Operating ambient temperature: +5 to +40 °C
• Electrical connection: 230 V, 50 Hz and 110 V, 60 Hz
• Indicated power consumption: 150 W
• Protection class: IP 54
• Fine filter (inlet) (optional): 0.01 micron
• Activated carbon filter (inlet) (optional): 0.003 micron
• Fine filter (outlet) (optional): 3–5 microns
• Reference temperature*: 25 °C
• Reference elevation*: 0 m
• Reference atmospheric pressure*: 1.0133 bar
• Reference relative humidity*: 70%
