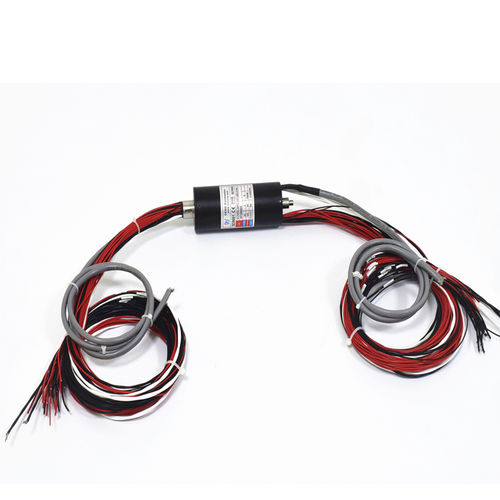

Gigabit Ethernet slip ring ECN000-26P2-02P-08S-01EM

industrialaluminum alloylow-torque

High anti-explosion grade slip ring with gigabit Ethernet signal, is a kind of conductive slip ring with highly reliable security, under working the explosive environment such as petroleum, chemical and explosive dust environment. Also with Gigabit Ethernet signal character base on market requirement. The Ethernet slip ring comply with EMC compatibility and meet the requirement of signal impedance matching, to make sure transmission low loss, no error code, long distance transmission. Insulation resistance 500MΩ@500VDC(current) 100MΩ@100VDC(signal) Dielectric strength - ≥1000V@50Hz(power) ≥300V@50Hz(signal) Electric noise - ≦70mΩ(with 50rpm running) Working temperature - -40°C~+80°C Contact material Precious metal
