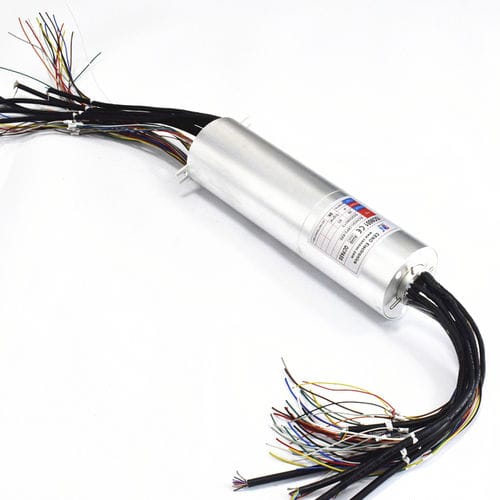

Through-hole slip ring ECN030-28P2-83S
industrialaluminum alloyIP54

Through-hole slip ring - ECN030-28P2-83S - CENO Electronics technology Co., Ltd - industrial / aluminum alloy / IP54
Through-hole slip ring - ECN030-28P2-83S - CENO Electronics technology Co., Ltd - industrial / aluminum alloy / IP54
Through-hole slip ring - ECN030-28P2-83S - CENO Electronics technology Co., Ltd - industrial / aluminum alloy / IP54 - image - 2
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
through-hole
Applications
industrial
Material
aluminum alloy
Other characteristics
IP54, high-performance
Voltage

Max.: 380 V

Min.: 0 V

Primary current

10 A

Rotational speed

Max.: 20 rpm
(126 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

46 unit

Internal diameter

30 mm
(1.18 in)

Description

This is servo motor slip ring for automatic winding machine, there are 6 group servo motor encoder signal and 10A power and ordinary signal, total 118 circuits. Through hole size is 30mm, housing material is aluminum alloy, low electrical noise. Electrical noise - ≤30mΩ(50rpm) Dielectric strength - ≥1000V@50Hz(power) ≥300V@50Hz (signal) Insulation resistance - 500MΩ@500VDC(power) 100MΩ@100VDC(signal) Contact material - Precious metals Operating temperature - -20~+60℃
