USB slip ring ECN025-03P5-14S-01U2-02EG
serial1 Gbpsthrough-bore

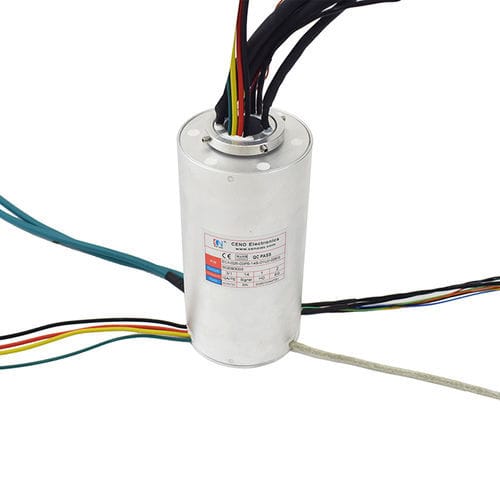

USB slip ring - ECN025-03P5-14S-01U2-02EG - CENO Electronics technology Co., Ltd - serial / 1 Gbps / through-bore
USB slip ring - ECN025-03P5-14S-01U2-02EG - CENO Electronics technology Co., Ltd - serial / 1 Gbps / through-bore
USB slip ring - ECN025-03P5-14S-01U2-02EG - CENO Electronics technology Co., Ltd - serial / 1 Gbps / through-bore - image - 2
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Type
USB, serial, 1 Gbps
Construction
through-bore
Applications
industrial
Material
gold, aluminum
Other characteristics
low-temperature, waterproof, high-current, multi-channel, with gold contacts, IP65
Voltage

Min.: 0 V

Max.: 380 V

Primary current

30 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 300 rpm
(1,885 rad.min-1)

Number of channels

17 unit

Internal diameter

25.4 mm
(1 in)

External diameter

86 mm
(3.39 in)

Description

Overview
CENO ECN025-03P5-14S-01U2-02EG is a low-temperature slip ring with IP65 waterproof protection. Designed for continuous 360° rotation, it transmits power, signals (including high-frequency), data and media between a stationary and a rotating structure while operating reliably in cold environments.

Specification
Model: ECN025-03P5-14S-01U2-02EG
Current & Circuits: 3*30A; 1*PE; 8* Signal; 2*1000M Ethernet; 2* RS232; 1* USB2.0
Rating Voltage: 0 ~ 380 VAC/VDC
Dielectric strength: ≥1000VAC@50Hz; ≥500VAC@50Hz
Isolation resistance: ≥500MΩ@500VDC; ≥300MΩ@100VDC
Contact resistance: ≤70mΩ
Working temperature: -55°C~+80°C
Working humidity: 60 %RH
IP protection grade: IP65
Operating speed: 0~300rpm
Inner diameter: Ø25.4mm
Outer diameter: Ø86mm
Contact material: Gold-to-Gold; Precious metal
Housing material: Aluminium Alloy
Lead wire size: As customized
Lead wire length: As customized

Outline drawing
An outline drawing image is provided on the product page to support integration and installation planning.

Technical specifications
  • Current & Circuits: 3*30A; 1*PE; 8* Signal; 2*1000M Ethernet; 2* RS232; 1* USB2.0
  • Rating Voltage: 0 ~ 380 VAC/VDC
  • Dielectric strength: ≥1000VAC@50Hz; ≥500VAC@50Hz
  • Isolation resistance: ≥500MΩ@500VDC; ≥300MΩ@100VDC
  • Contact resistance: ≤70mΩ
  • Working temperature: -55°C~+80°C
  • Working humidity: 60 %RH
  • IP protection grade: IP65
  • Operating speed: 0~300rpm
  • Inner diameter: Ø25.4mm
  • Outer diameter: Ø86mm
  • Contact material: Gold-to-Gold; Precious metal
  • Housing material: Aluminium Alloy
  • Lead wire size: As customized
  • Lead wire length: As customized
