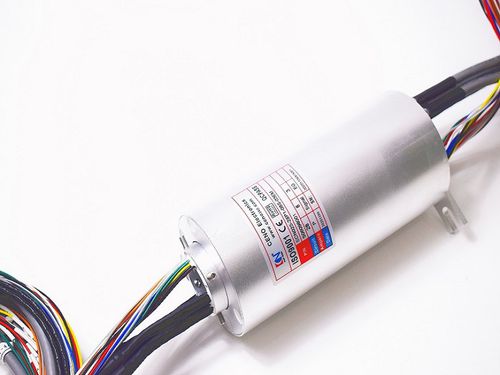

Ethernet slip ring ECN025-28P1-08S-03EM

through-borefor medical equipmentfor military applications

This is a multi-channel slip ring integrate with power ,2 channels of RS485 and 3 channels of 100M Ethernet .Cable length 1000mm on both sides .The slip ring is designed exclusively for Ethernet transmission. Moreover, it can integrate signal, power and high frequency into one unit to lower the height and save the installation space. One more point lies in its high rotating precision, reliable performance, long service life and optional current. All have been certificated by the patent technology.Typical application including medical machine,military industry and offshore equipment. Features 3 groups 100M Ethernet Long service life Power and signal are mixed Maintenance-free Applications Military industry Medical machine Simulation test equipment Test equipment Display equipment Turntable Radar system Optional Through hole size Current rating & Signal type Cable length IP protection grade Specification Circuits: - 22*5A,2*PE,4*5A,2*RS485,3*100MEthernet Voltage: - 220VAC/48VDC/24VDC Electrical noise: - ≤30mΩ(50rpm) Dielectric strength: - ≥1000V@50Hz(power) ≥300V@50Hz(signal) Insulation resistance: - ≥500MΩ@500VDC(power) ≥100MΩ@300VDC(signal) Operating speed - :0-300 rpm Contact material: - Precious metal Housing material: - Aluminium alloy IP protection grade: - IP51 Through hole size: - 25.4 mm
