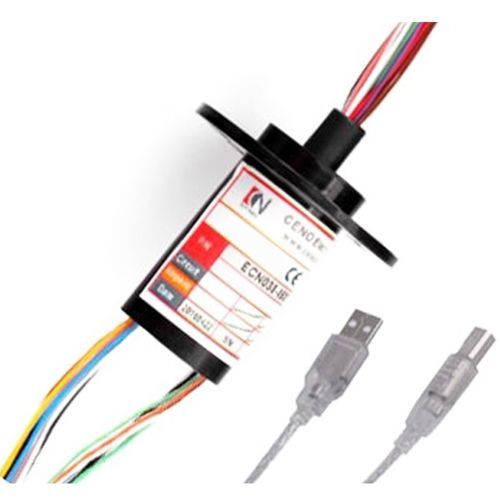

USB slip ring ACN-02P-01UBcapsule
Add to favorites
Compare this product
Characteristics
- Type
- USB
- Construction
- capsule
- Voltage
Min.: 0 V
Max.: 220 V
- Primary current
2 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 10 rpm
(63 rad.min-1)- Number of channels
3 unit
Description
USB slip ring specially designed to transmit USB1.0/USB2.0 signals with advantage of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss. USB slip ring solve the problem of large capacity data signal transmission between system components rotating connection, and provides the best technical solutions.
Dielectric strength -
≥500VAC@50Hz(Power)
≥100VAC@50Hz(Signal)
Insulation resistance -
≥100MΩ@500VDC(Power)
≥10MΩ@100VDC(Signal)
Electrical noise - ≤15m Ω
Lead wire length - 250mm
Working temperature - -20℃~+60℃
Contact material - Precious metal
