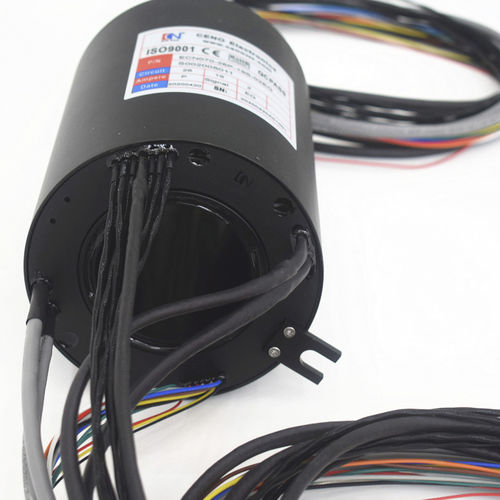

Gigabit Ethernet slip ring ECN070-26P-19S-02EGthrough-holeindustrialvideo transmission
Add to favorites
Compare this product
Characteristics
- Type
- gigabit Ethernet
- Construction
- through-hole
- Applications
- industrial, video transmission
- Material
- aluminum alloy
- Other characteristics
- IP54, multi-channel, hybrid, shaft-mounted
- Voltage
Max.: 220 V
Min.: 0 V
- Primary current
2 A, 10 A
- Rotational speed
Max.: 300 rpm
(1,885 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
36 unit
- Internal diameter
70 mm
(2.76 in)
Description
This is through hole slip ring for motion simulator application, through hole size 70mm, housing material is aluminum alloy, video signal and Gigabit Ethernet combined power to deliver in this slip ring. A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power and signal from a stationary to a rotating structure.
Electrical noise - ≤30mΩ(50rpm)
Dielectric strength -
≥1000V@50Hz (power)
≥300V@50Hz (signal)
Insulation resistance -
≥1000MΩ@500VDC (power)
≥100MΩ@500VDC (signal)
Contact material - Precious metals
Operating temperature - -20~+60℃
