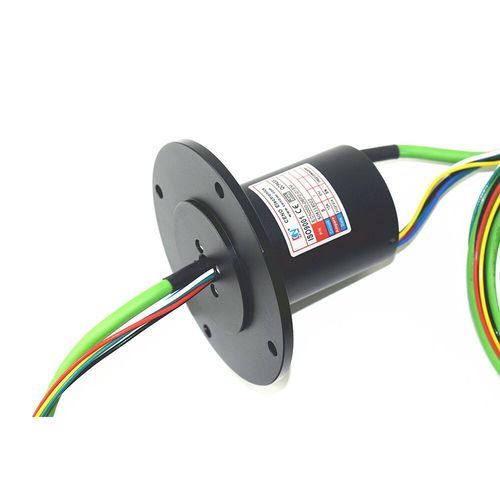

Ethernet slip ring ECN000-06P2-01EM

1 Gbps100 Mbpsfor telecommunication networks

Overview
ECN000-06P2-01EM is an Ethernet signal slip ring from CENO Electronics featuring low electrical noise. It provides six 10A power circuits and one 100M Ethernet channel. It supports stable 100M or 1000M Ethernet transmission depending on the application, with no packet loss, no code errors, low attenuation and capability for long-distance transmission. Typical applications include automatic machines such as filling machines, wrapping machines and communication systems.

Specification
Model: ECN000-06P2-01EM
Current & Circuits: 6 circuits × 10A; 1 circuit × 100M Ethernet
Rated voltage: 0–380 VAC/VDC
Dielectric strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
Electrical noise: ≤30mΩ (50 rpm)
Lead wire length: Rotor 1000 mm; Stator 2000 mm
Operating speed: 0–300 rpm
Contact material: Precious metal
Housing material: Aluminum alloy
Operating temperature: -20°C to +60°C
Operating humidity: 60%
Protection grade: IP51

Outline drawing
Outline drawing available (technical drawing image provided).

Technical specifications

• Model: ECN000-06P2-01EM
• 6 circuits for 10A power
• 1 channel for 100M Ethernet (supports 100M/1000M transmission)
• Rated voltage: 0–380 VAC/VDC
• Dielectric strength: ≥1000VAC@50Hz; ≥300VAC@50Hz
• Isolation resistance: ≥500MΩ@500VDC; ≥100MΩ@300VDC
• Electrical noise: ≤30mΩ (50 rpm)
• Lead wire length: Rotor 1000 mm; Stator 2000 mm
• Operating speed: 0–300 rpm
• Contact material: Precious metal
• Housing material: Aluminum alloy
• Operating temperature: -20°C to +60°C
• Operating humidity: 60%
• Protection grade: IP51
