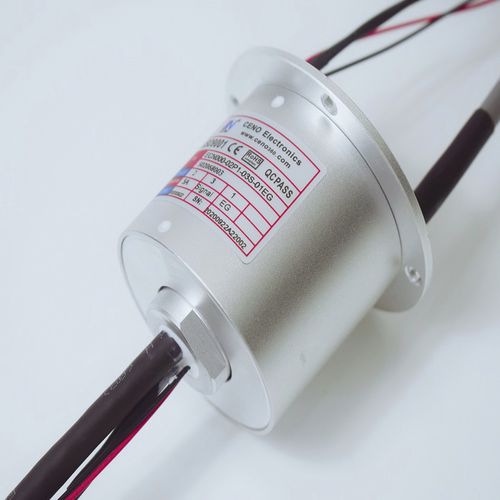

ECN000-02P1-03S-01EG Ethernet slip ring
The ECN-EG series Ethernet slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets. ECN-EG series slip rings provide 100Base-T or 1000Base-T Ethernet connections with a combination of 5, 10, and 15 amp power connections. Utilizing high performance gold-on-gold contacts, the ECN-EG series features low electrical noise and Ethernet cables terminated with RJ45 connectors.
Need a combined fluid and electrical solution? We offer complete fluid rotary union and electrical slip ring integrated packages.welcome to contact with CENO.
Features
1000M Ethernet signals
Integrate signal RS232 and 5A power
Long life time
Stable performance
Applications
Rotary tables
Motion simulator
Lithium battery equipment
Simulation test equipment
Optional
Through hole size
Current rating
Signal type
IP protection grade
Circuits: - 2*5A, 1*Gigabit Ethernet,3*RS232
Voltage: - 0~220VAC/VDC
Electrical noise: - ≤30mΩ(50rpm)
Dielectric strength: - ≥1500V@50Hz(power)
≥300V@50Hz(signal)
Insulation resistance - ≥500MΩ@500VDC(power)
≥100MΩ@100VDC(signal)
Operating speed: - 0-300 rpm
Contact material: - Precious metal
Housing material: - Aluminium alloy
IP protection grade: - IP54
Through hole size: - None
