Ethernet slip ring ECN038-04P3-04P2-02EG
gigabit Ethernetthrough-holefor industrial applications

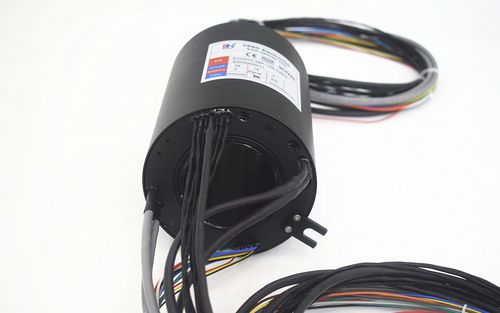

Ethernet slip ring - ECN038-04P3-04P2-02EG - CENO Electronics technology Co., Ltd - gigabit Ethernet / through-hole / for industrial applications
Ethernet slip ring - ECN038-04P3-04P2-02EG - CENO Electronics technology Co., Ltd - gigabit Ethernet / through-hole / for industrial applications
Ethernet slip ring - ECN038-04P3-04P2-02EG - CENO Electronics technology Co., Ltd - gigabit Ethernet / through-hole / for industrial applications - image - 2
Ethernet slip ring - ECN038-04P3-04P2-02EG - CENO Electronics technology Co., Ltd - gigabit Ethernet / through-hole / for industrial applications - image - 3
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Type
Ethernet, gigabit Ethernet
Construction
through-hole
Applications
for industrial applications, for HD video surveillance
Other characteristics
standard, IP54, high-performance, low-torque, high-speed
Voltage

380 V

Primary current

10 A, 15 A

Rotational speed

300 rpm
(1,885 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Max.: 300 rpm
(1,885 rad.min-1)

Number of channels

11 unit

Internal diameter

38.1 mm
(1.5 in)

Description

This slip ring is a standard, through-hole slip ring with ETHERNET combination product that provides 8 circuits transmission 10A/15A/ power supply and combined ETHERNET communication, It can be used for 10/100 baset and 1000BaseT (gigabit Ethernet) Ethernet communication. Ethernet cable with RJ45 connector, easy connection, for transmission of HD video, high-speed digital signals. Inner diameter is 38.1mm, low electrical noise. Electrical noise - ≤30mΩ(50rpm) Dielectric strength - ≥1000V@50Hz(power) ≥300V@50Hz(signal) Insulation resistance - ≥500MΩ@500VDC(power) ≥100MΩ@100VDC(signal) Contact material - Contact material Operating temperature - -20~+60℃
