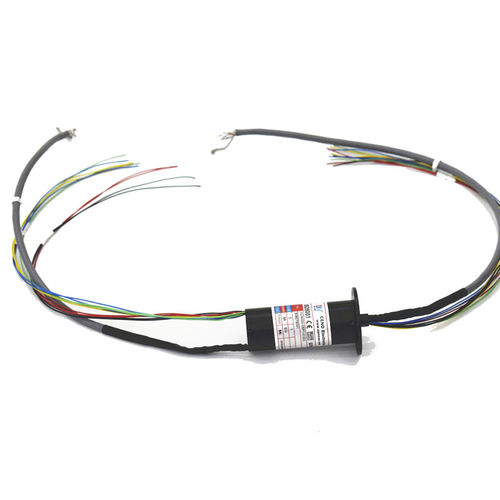

Ethernet slip ring ECN000-05P1-01EGUSBgigabit EthernetCAN bus
Add to favorites
Compare this product
Characteristics
- Type
- Ethernet, USB, gigabit Ethernet, CAN bus
- Applications
- industrial
- Other characteristics
- IP54, with gold contacts, flange, 380V AC/DC
- Voltage
Max.: 380 V
Min.: 0 V
- Primary current
5 A
- Rotational speed
Max.: 1,000 rpm
(6,283 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
6 unit
Description
This slip ring is designed for Ethernet transmission, compatible with data bus protocol, it can transmit Ethernet, analog/data signals, USB, RS, Canbus and firewire in a continuous rotation of 360 degrees, Good connector makes a convenient connection with quick plug in, high rotating precision, reliable performance.
Electrical noise - ≤30mΩ(50rpm)
Dielectric strength -
≥1000V@50Hz(power)
≥300V@50Hz(signal)
Insulation resistance -
500MΩ@500VDC(power)
100MΩ@300VDC(signal)
Contact material - gold to gold
Operating temperature - -20~+60℃
Rotation way - flange installation
