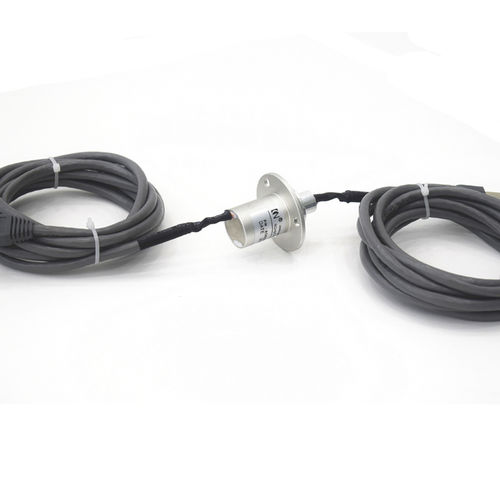

Ethernet slip ring ACN22A-12-01EM

capsulefor HD video surveillancealuminum alloy

This is compact size Ethernet slip ring, transmitting 100M Ethernet, it is designed for high definition video surveillance or serial communication application.Stable data transmission,no packet loss ,low return loss,low error rate,super high SNR. According to the standard network cable connection mode, provide RJ45 connector directly pluggable. Features Stable data transmission,no packet loss ,low return loss, Low error rate ,super high SNR The solution can combine hybrid of power, digital signal,fiber optic,gas-liquid Applications High definition video surveillance Serial communication Industrial automatic control Optional Signal type Circuit number Current rating Connector type IP protection grade Specification Current - 1*100M Ethernet Voltage - 0~24VAC/VDC Electrical noise - ≤10mΩ(50rpm) Dielectric strength - ≥500V@50Hz(signal) Insulation resistance - ≥500MΩ@500VDC(signal) Operating speed - 0-250 rpm Contact material - precious metals Operating temperature - -20~+80℃ IP protection grade - IP55 Housing material - Aluminum alloy
