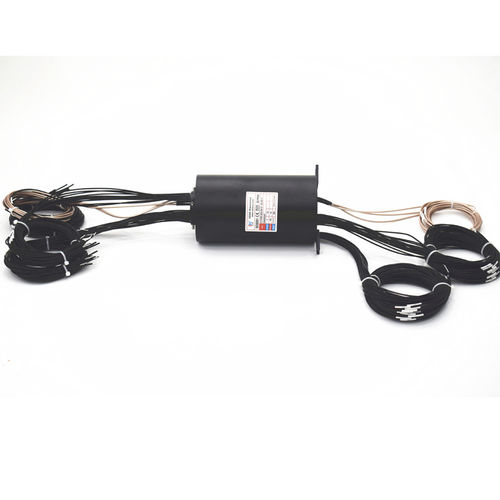

Through-bore slip ring ECN038-32S-03HDfor rotary tablesaluminum alloywith gold contacts
Add to favorites
Compare this product
Characteristics
- Construction
- through-bore
- Applications
- for rotary tables
- Material
- aluminum alloy
- Other characteristics
- with gold contacts, multi-channel, high-definition
- Voltage
Max.: 150 V
Min.: 0 V
- Primary current
1 A
- Rotational speed
Max.: 250 rpm
(1,571 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
35 unit
- Internal diameter
38 mm
(1.5 in)
Description
This is high definition slip ring for rotary table, through bore size 38mm, total 35 lead wires, multi-channels combining power and various signal, it has special 3 channels for bandwidth signal, housing material is aluminium alloy, working speed 250rpm max, smooth rotation. gold- gold contact point to guarantee extending working lifespan.
Electrical noise - ≤10mΩ(50rpm)
Dielectric strength - ≥1000V@50Hz
Insulation resistance - 500MΩ@500VDC
Contact material - gold to gold
Operating temperature - -30~+40℃
