Ethernet slip ring ECN050-14S-01EM-IP65

through-borefor measurement instrumentsfor thermocouples

Product overview

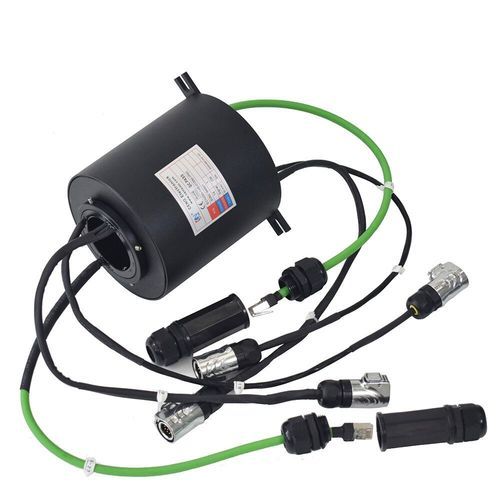

ECN050-14S-01EM-IP65 is a customized low-temperature signal slip ring combining thermocouple, encoder and Ethernet signals. It is designed for industrial automation and control systems where simultaneous transmission of temperature signals, encoder feedback and Ethernet data is required in cold environments. Typical applications include position and velocity detection, inter-process communication and temperature measurement of gases or liquids in furnaces and pipelines.

Specification (table)
ECN050-14S-01EM-IP65 | Specification
Current & Circuits: 5 Groups for thermocouple, Encoder and Ethernet signals
Rating Voltage: 0-24VAC/VDC
Dielectric strength: ≥300VAC@50Hz
Isolation resistance: ≥100MΩ@300VDC
Contact resistance: ≤30mΩ (50rpm)
Working temperature: -40°C~+60°C
Working humidity: 60 %RH
IP protection grade: IP65
Operating speed: 0 ~ 300rpm
Inner diameter: Ø50mm
Housing material: Aluminum Alloy
Contact material: Precious metal
Lead wire size: As Customized
Lead wire length: As Customized
Rotation Way: Fix up stator side with anti-rotation tab side

Outline drawing
Outline drawing image is available.

Technical features

• Combined channels for thermocouple, encoder and Ethernet to minimize rotary interfaces
• Wide operating temperature range: -40°C to +60°C for low-temperature applications
• IP65 rated housing for protection against dust and water jets
• Low contact resistance (≤30mΩ at 50rpm) for stable signal transmission
• Customizable lead wire size and length to match installation requirements
• Aluminum alloy housing and precious metal contacts for reliable electrical performance
• Inner diameter Ø50mm to fit common shaft or feed-through configurations
• Designed for speeds up to 300rpm with stator anti-rotation tab mounting
