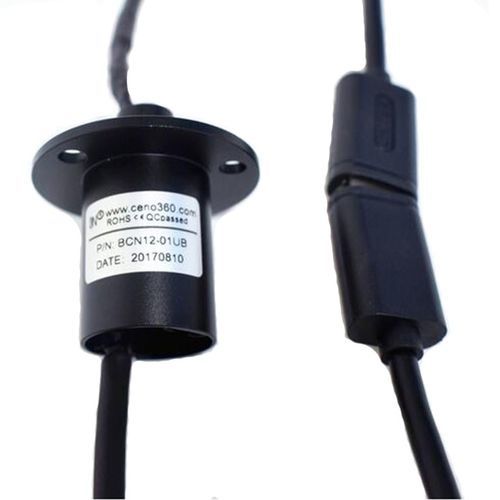

USB slip ring BCN12-01UBindustrialcompactIP54
Add to favorites
Compare this product
Characteristics
- Type
- USB
- Applications
- industrial
- Other characteristics
- compact, IP54
- Voltage
48 V
- Rotational speed
Max.: 300 rpm
(1,885 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
1 unit
Description
CENO USB slip ring is a rotary joint to transmit USB signal during 360 degrees rotating, it is specially designed to transmit USB1.0/USB2.0/USB3.0 signals with advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss.
Electric noise - ≤10mΩ(50rpm )
Lead Wire Size - USB3.0
Lead Wire Length - 250mm
Working Temperature - -20℃~+60℃
Contact material - Precious metal
