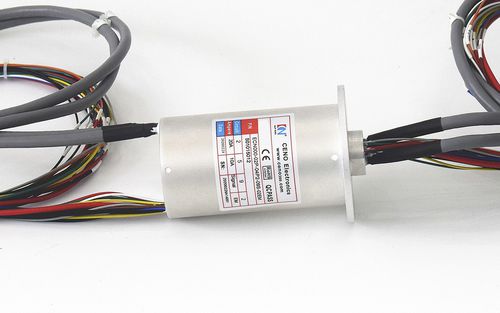

Ethernet slip ring ECN000-02P-04P2-09S-02EMsolid-shaftindustrialaluminum alloy
Add to favorites
Compare this product
Characteristics
- Type
- Ethernet
- Construction
- solid-shaft
- Applications
- industrial
- Material
- aluminum alloy
- Other characteristics
- IP54, low-torque, custom-made
- Voltage
Max.: 220 V
Min.: 0 V
- Primary current
10 A, 20 A
- Rotational speed
Max.: 12 rpm
(75 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
18 unit
Description
Ethernet slip ring rotary joint can transmit 100M/1000M Ethernet signal, this model slip ring transmits two group of 100M Ethernet signal and power, 1000M Ethernet signal is optional. There are across flats design on rotational shaft for easy fixing rotor part.
Electrical noise - ≤30mΩ(50rpm)
Dielectric strength -
≥1000V@50Hz(power)
≥300V@50Hz(signal)
Insulation resistance -
500MΩ@500VDC(power)
100MΩ@100VDC(signal)
Contact material - precious metals
Operating temperature - -20~+60℃
