Ethernet slip ring ECN000-77P

serialgigabit Ethernetfor telecommunication networks

Overview

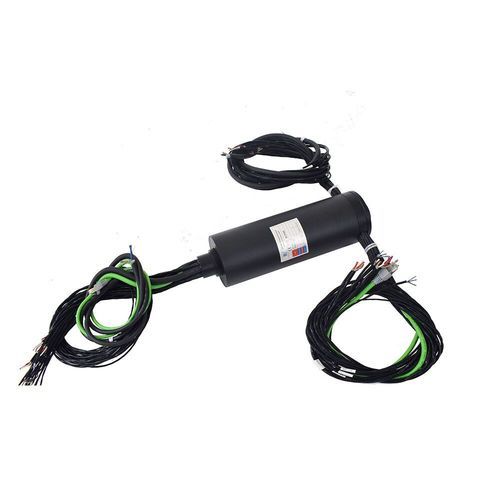

CENO ECN000-77P is an Ethernet signal slip ring designed for data center and industrial Ethernet applications. It provides 1×1000M Ethernet plus configurable power and signal circuits, ensuring continuous rotary transmission with EMC compliance.

Applications

• Data centers and rotating network equipment
• Industrial Ethernet systems and automation
• Test benches, rotating platforms and telemetry systems

Technical specifications
Model: ECN000-77P
Ethernet: 1 × 1000M Ethernet
Power & signal circuits examples: 2×15A; 14×10A; 12×1A; 8×2A; 3×5A
Rated voltage: 400VAC / VDC
Dielectric strength: ≥1000VAC@50Hz (Power); ≥300VAC@50Hz (Signal)
Isolation resistance: ≥500MΩ@500VDC (Power); ≥100MΩ@300VDC (Signal)
Contact material: Gold-to-gold
Housing material: Aluminum alloy
Electrical noise: ≤30mΩ (50 rpm)
Operating speed: 0–50 rpm
IP grade: IP51
Operating temperature: -20℃ to +80℃
Working humidity: ≤90%
Lead wire length: Rotor side 850 mm; Stator side 1000 mm

Circuit configurations

• Examples: 2 circuits × 15A; 14 circuits × 10A; 12 circuits × 1A
• Signal circuits examples: 8×2A; 3×5A
• Includes 1×1000M Ethernet channel and RS232 option at 50VDC where applicable

Mechanical and installation
Flange installation. Aluminum-alloy housing with protection rating IP51. Lead wires supplied: rotor 850 mm, stator 1000 mm. Designed for rotary integration in equipment with speeds up to 50 rpm.

Compliance and documentation
CENO ECN000-77P meets EMC requirements for Ethernet transmission. Outline drawing and technical drawing (ECN000-77P drawing rev) available on request.
