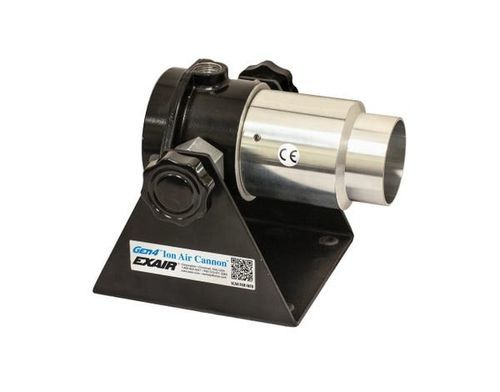

Ionizing air cannon Model 8192 Gen4®

safecompactstainless steel

Overview
EXAIR's Gen4® Ion Air Cannon™ neutralizes static electricity and provides cleaning at distances up to 15 feet (4.6 m) without moving parts. It produces a concentrated, conical flow of ionized air using a Super Air Amplifier and a replaceable emitter; with an optional pressure regulator, air volume and velocity are infinitely adjustable to match light or heavy duty industrial applications.

Applications

• Bag opening — form and fill
• Cleaning and neutralizing parts
• Neutralizing shrink wrap
• Cleaning molded components
• Removing static from assemblies
• Neutralizing slitting operations
• Package and container cleaning
• Neutralization in automated lines and confined spaces

Advantages

• Low compressed air consumption
• Rapid static decay at target
• Quiet operation compared with open nozzles
• Effective performance up to 15 ft (4.6 m)
• Shockless, non-radioactive ionization
• Compact, rugged construction — easy to install
• Intake can be ducted to remote air source
• No moving parts — low maintenance
• Variable force and flow with optional regulator

Models
Ion Air Cannon models are offered in four configurations: Ion Air Cannon; Ion Air Cannon with Power Supply; Ion Air Cannon Kit; Deluxe Ion Air Cannon Kit. Example model numbers: 8192 (Ion Air Cannon), 8292 (with Power Supply), 8492 (Kit), 8492DX (Deluxe Kit).

Accessories

• Power Supply — Model 7960 (selectable voltage) provides the high voltage for the emitter, includes modular shielded cable and integrated primary fuse. Power supplies are UL Component Recognized and CE and RoHS compliant.
• Shim Sets — A 0.003" (0.08 mm) stainless steel shim ships installed. Optional shim sets (.006" / 0.15 mm and .009" / 0.23 mm) increase air velocity when required.

How it works (summary)
The Gen4® Ion Air Cannon incorporates a Super Air Amplifier and an ionizing collar energized by a power supply. Compressed air is injected into the barrel, inducing a high-volume flow of surrounding air through the cannon. A replaceable stainless steel emitter ionizes the airstream, producing a conical flow of ionized air that neutralizes static and cleans at distances up to 15 ft (4.6 m). More than 90% of the airstream is induced air, delivering high volume at low compressed air consumption.

Technical specifications

• Model (SKU): 8192
• Commercial name / model designation: Gen4® Ion Air Cannon™
• Brand: EXAIR
• Operation distance: Effective up to 15 ft (4.6 m)
• Principle: Super Air Amplifier with ionizing emitter; induced airflow >90% for high volume at low compressed air usage
• Compressed air connection: 3/8" NPT inlet
• Air consumption & performance (measured at 12" / 305 mm from target):
  20 PSIG (1.4 BAR) — 5.7 SCFM (161 SLPM), 58 dBA, dissipates 5 kV in 0.75 s
  40 PSIG (2.8 BAR) — 9 SCFM (255 SLPM), 64 dBA, dissipates 5 kV in 0.6 s
  60 PSIG (4.1 BAR) — 12.2 SCFM (345 SLPM), 70 dBA, dissipates 5 kV in 0.5 s
  80 PSIG (5.5 BAR) — 15.5 SCFM (439 SLPM), 72 dBA, dissipates 5 kV in 0.43 s
  100 PSIG (6.9 BAR) — 18.7 SCFM (529 SLPM), 74 dBA, dissipates 5 kV in 0.37 s
• Electrical: Requires a 5 kVrms (5 kV) power supply (Model 7960 or 7961). Use with specified power supply rated 5 kVrms, 5 mA max.
• Electrical hazard: Shockless ( < 40 µA short-circuited). Do not use near flammable materials or gases.
• Emitter material: Stainless steel (replaceable)
• Metal parts: Aluminum
• Plastic parts: UL 94 HB rated
• Maximum ambient temperature: 165°F (74°C)
• No moving parts — low maintenance
• Adjustability: Air volume and velocity infinitely adjustable with optional pressure regulator
