Ionizing air knife with plumbing kit Model 112160PKI Gen4 Super

for the paper industryfor the printing industryfor the plastics industry

Overview

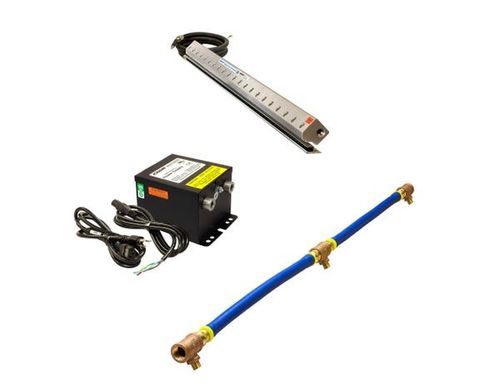

The Gen4® Super Ion Air Knife™ system comprises the Super Air Knife with integrated Gen4 Ionizing Bar, the required power supply (Model 7960 or 7961 — selectable 115 VAC/230 VAC, 50/60 Hz) and a plumbing kit to simplify installation. The system produces a uniform, laminar sheet of ionized air that neutralizes static and removes particulate from plastics, webs, sheet stock and other product surfaces to reduce tearing, jamming and electrostatic shock risks. Designed for continuous industrial use with low maintenance requirements.

Applications

• Web and film cleaning
• Injection and blow molding lines
• Sheeters and trimming stations
• Part cleaning prior to assembly
• Pre-paint dust removal
• Shrink wrapping and packaging lines
• Package cleaning and handling
• Bag opening and filling operations
• Printing and converting equipment

Advantages

• Up to 34% improved ionizing performance compared to previous designs
• Armored, electromagnetically shielded cable for durability and EMI protection
• Integrated grounding on ionizing bar eliminates separate ground connection
• Stainless steel connections to power supply for corrosion resistance
• Modular power supply cable simplifies routing and connections
• Low compressed-air consumption
• Uniform airflow and ion distribution across the entire length
• Quiet operation suitable for production environments
• Effective ionization up to 20 ft (6.1 m)
• Shockless, non-radioactive design
• Compact, rugged construction and easy installation
• Unlimited system lengths by coupling multiple units
• Low maintenance and adjustable force/flow using shims

Models
Gen4 Super Ion Air Knives are offered in four model variants to match installation and performance needs:

• Gen4 Super Ion Air Knife — Super Air Knife with Gen4 Ionizing Bar assembly.
• Gen4 Super Ion Air Knife Systems — includes a Gen4 Super Ion Air Knife plus Model 7960 Gen4 Power Supply (115V/230VAC, 50/60Hz).
• Gen4 Super Ion Air Knife Kits — includes Gen4 Super Ion Air Knife, Model 7960 Power Supply, shim set, filter separator and pressure regulator with coupler.
• Gen4 Deluxe Super Ion Air Knife Kits — adds EFC (electronic flow control) and Universal Air Knife Mounting System to the kit above.

Model / Part Number Table (Airflow Length vs Part Numbers)
Airflow Length | Gen4 Super Ion Air Knife | Gen4 Super Ion Air Knife Systems | Gen4 Super Ion Air Knife Kit | Gen4 Deluxe Super Ion Air Knife Kit
3" (76mm) | 112003 | 112103 | 112203 | 112203DX
6" (152mm) | 112006 | 112106 | 112206 | 112206DX
9" (229mm) | 112009 | 112109 | 112209 | 112209DX
12" (305mm) | 112012 | 112112 | 112212 | 112212DX
18" (457mm) | 112018 | 112118 | 112218 | 112218DX
24" (610mm) | 112024 | 112124 | 112224 | 112224DX
30" (762mm) | 112030 | 112130 | 112230 | 112230DX
36" (914mm) | 112036 | 112136 | 112236 | 112236DX
42" (1067mm) | 112042 | 112142 | 112242 | 112242DX
48" (1219mm) | 112048 | 112148 | 112248 | 112248DX
54" (1372mm) | 112054 | 112154 | 112254 | 112254DX
60" (1524mm) | 112060 | 112160 | 112260 | 112260DX
72" (1829mm) | 112072 | 112172 | 112272 | 112272DX
84" (2134mm) | 112084 | 112184 | 112284 | 112284DX
96" (2438mm) | 112096 | 112196 | 112296 | 112296DX
108" (2743mm) | 1120108 | 1121108 | 1122108 | 1122108DX

Accessories and Notes

• Power supplies (Model 7960 two-outlet and Model 7961 four-outlet) feature selectable input voltage (115VAC/230VAC), modular armored and shielded cable, integrated primary fuse and lighted power switch; UL Component Recognized (US/Canada), CE and RoHS compliant.
• Universal Air Knife Mounting System (Model 9060) provides stainless-steel secure positioning; articulation and extension options depend on knife length.
• Plumbing kits supply appropriately sized hose/pipe and fittings to interconnect multiple inlets for optimal performance; kits for aluminum knives include pressure gauge, nitrile/PVC hose and brass fittings.
• Coupling Bracket Kits allow joining multiple Air Knives for extended lengths and include rigid plates and stainless-steel fasteners.
• Shim sets are available to adjust exhaust gap and tune force/flow; shim thickness details provided with kits.

Specifications

• Available lengths: 3, 6, 9, 12, 18, 24, 30, 36, 42, 48, 54, 60, 72, 84, 96 and 108" (76–2743 mm). Special lengths and unlimited coupled system lengths available.
• Cable: 5' armored, electromagnetically shielded cable with ground and bayonet connector supplied.
• Power supply: EXAIR Model 7960 or 7961 required (5 kV); supplies include 6' modular power cord, lighted switch and integrated primary fuse.
• Compressed air: 1/4 NPT outlets on each end and bottom; plumbing kits provided for knives ≥24" for multiple inlets.
• Electrical: For use with 5 kVrms, 5 mA (max) power supply.
• Electrical hazard: Gen4 Ionizing Bars are shockless (<40 μA short-circuited). Do not use near flammable materials or gases.
• Construction materials: Aluminum (metal parts); emitters stainless steel; plastic parts rated UL 94 HB.
• Maximum ambient temperature: 165°F (74°C).
• Performance per foot (305 mm) — Pressure Supply PSIG (BAR) | Air Consumption SCFM | Air Consumption SLPM | Sound Level dBA | Dissipates 5 kV (seconds):
  5 PSIG (0.3 BAR) | 3.7 SCFM | 105 SLPM | 39 dBA | 0.40 s
  10 PSIG (0.7 BAR) | 5.5 SCFM | 156 SLPM | 51 dBA | 0.33 s
  20 PSIG (1.4 BAR) | 13.2 SCFM | 372 SLPM | 57 dBA | 0.26 s
  40 PSIG (2.8 BAR) | 20.4 SCFM | 576 SLPM | 61 dBA | 0.23 s
  60 PSIG (4.1 BAR) | 27.6 SCFM | 780 SLPM | 65 dBA | 0.21 s
  80 PSIG (5.5 BAR) | 34.8 SCFM | 984 SLPM | 69 dBA | 0.20 s
  100 PSIG (6.9 BAR) | 42.0 SCFM | 1188 SLPM | 72 dBA | 0.18 s
