Dust control ionizing air knife 112236PKI 36" Gen4

static charge eliminationcleaningfor the plastics industry

Overview

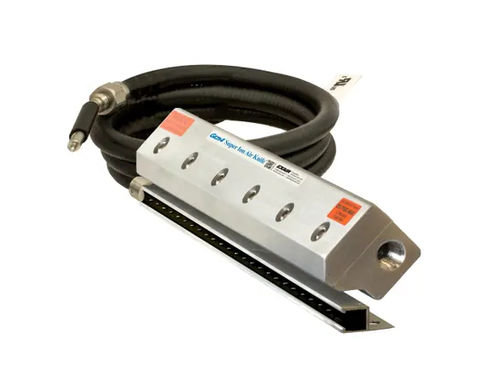

EXAIR's Gen4® Super Ion Air Knife™ Kit with Plumbing Kit includes all the tubes and fittings pre-installed to simplify final installation and provide consistent performance across the length of the air knife. The kit includes a Power Supply (115 VAC/230 VAC, 50/60 Hz), shim set, filter separator, and pressure regulator (with coupler). A Super Ion Air Knife produces a smooth, even airflow so that static-removing ions can be distributed evenly across plastics, webs, sheet stock and other product surfaces to prevent tearing, jamming or hazardous shocks. The laminar sheet of air sweeps surfaces clean of static, particulate, dust and dirt, improving production speeds, product quality, and surface cleanliness.

Applications

• Web cleaning
• Molding machinery
• Sheeters and trimmers
• Cleaning parts
• Pre-paint dust removal
• Shrink wrappers
• Package cleaning
• Bag opening/fill operations
• Printing equipment

Advantages

• Up to 34% improved performance
• Rugged metal armored and electromagnetic shielded cable
• Integrated ground eliminates additional ground connection
• Durable stainless steel connections to Power Supply
• Modular power supply cable eases connections and routing
• Low air consumption
• Uniform airflow across entire length
• Quiet operation
• Effective up to 20 feet (6.1 m)
• Shockless, non-radioactive
• Compact, rugged, easy to install
• Unlimited system lengths of uninterrupted airflow
• Low maintenance
• Variable force and flow

Gen4 Super Ion Air Knife Models

• Gen4 Super Ion Air Knife - includes the Super Air Knife and Gen4 Ionizing Bar assembly.
• Gen4 Super Ion Air Knife Systems - include a Gen4 Super Ion Air Knife and Model 7960 Gen4 Power Supply (115V, 230VAC, 50/60Hz).

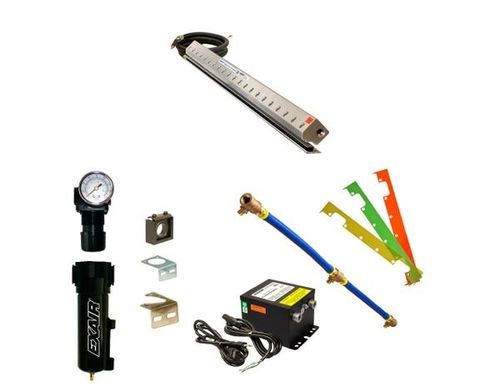

• Gen4 Super Ion Air Knife Kits - include a Gen4 Super Ion Air Knife, Model 7960 Gen4 Power Supply, shim set, filter separator and pressure regulator (with coupler).
• Gen4 Deluxe Super Ion Air Knife Kits - include a Gen4 Super Ion Air Knife, Model 7960 Gen4 Power Supply, EFC, Universal Air Knife Mounting System, shim set, filter separator and pressure regulator (with coupler).

Model / Length Reference (selection)
Airflow Length vs. example model numbers (table rows shown as lines):
3" (76 mm) - Gen4: 112003 | Systems: 112103 | Kit: 112203 | Deluxe Kit: 112203DX
6" (152 mm) - Gen4: 112006 | Systems: 112106 | Kit: 112206 | Deluxe Kit: 112206DX
9" (229 mm) - Gen4: 112009 | Systems: 112109 | Kit: 112209 | Deluxe Kit: 112209DX
12" (305 mm) - Gen4: 112012 | Systems: 112112 | Kit: 112212 | Deluxe Kit: 112212DX
18" (457 mm) - Gen4: 112018 | Systems: 112118 | Kit: 112218 | Deluxe Kit: 112218DX
24" (610 mm) - Gen4: 112024 | Systems: 112124 | Kit: 112224 | Deluxe Kit: 112224DX
30" (762 mm) - Gen4: 112030 | Systems: 112130 | Kit: 112230 | Deluxe Kit: 112230DX
36" (914 mm) - Gen4: 112036 | Systems: 112136 | Kit: 112236 | Deluxe Kit: 112236DX
... up to 108" (2743 mm) - see full model list for all lengths

Accessories (included or available)

• Power Supplies (Model 7960 two-outlet, Model 7961 four-outlet) — selectable 115VAC/230VAC, modular shielded cable, integrated primary fuse, lighted switch.
• Universal Air Knife Mounting System — stainless steel mounting and articulation for precise positioning; mounting details and recommended quantity by knife length.
• Air Knife Plumbing Kits — proper sized hose/pipe and fittings, pressure gauge (for aluminum knives 24" and longer), nitrile/PVC hose and brass fittings.
• Coupling Bracket Kits — join two Super Air Knives together for lengths beyond standard sizes; includes rigid plates and stainless steel screws.
• Air Knife Shim Sets — shims to set the exhaust gap and adjust force/flow (shims supplied/available in various thicknesses).

Caractéristiques / spécifications techniques

• Lengths available: 3", 6", 9", 12", 18", 24", 30", 36", 42", 48", 54", 60", 72", 84", 96", 108" (76 to 2743 mm). Special and unlimited system lengths up to 118" (3 m) noted.
• Cable: 5' length armored and electromagnetically shielded cable with ground and assembled bayonet connector included.
• Power Supply: EXAIR Model 7960 or 7961 Gen4 Power Supply (5 kV) required for operation; modular 6' (1.83 m) power cord; (2) or (4) HV outlets; selectable input voltage 115VAC/230VAC.
• Compressed air: 1/4 NPT outlets provided on each end and the bottom of the Super Air Knife; Plumbing Kits recommended for knives 24" or longer (multiple inlets).
• Electrical: For use with 5 kVrms, 5 mA (max) power supply. Gen4 ionizing bars are shockless (less than 40 µA short-circuited). Do not use near flammable materials or gases.
• Materials of construction: Metal parts — aluminum; Plastic parts — UL rated 94 HB; Emitters — stainless steel.
• Maximum ambient temperature: 165°F (74°C).
• Performance (per foot / per 305 mm of knife length) examples:
  - At 5 PSIG (0.3 BAR): Air consumption 3.7 SCFM (105 SLPM) per foot; Sound level 39 dBA; Dissipates 5 kV in 0.40 seconds.
  - At 20 PSIG (1.4 BAR): Air consumption 13.2 SCFM (372 SLPM) per foot; Sound level 57 dBA; Dissipates 5 kV in 0.26 seconds.
  - At 100 PSIG (6.9 BAR): Air consumption 42.0 SCFM (1,188 SLPM) per foot; Sound level 72 dBA; Dissipates 5 kV in 0.18 seconds.
• Effective range: Up to 20 feet (6.1 m) for neutralization effectiveness (per product literature).
