Ionizing air knife Model 112212DX Gen4 Deluxe Super

Description
EXAIR's Gen4® Deluxe Super Ion Air Knife™ Kits provide a complete static-neutralization solution: Gen4 Super Ion Air Knife, Model 7960 Gen4 power supply, Electronic Flow Control (EFC), Universal Air Knife Mounting System, shim set, filter separator and pressure regulator with coupler. The system neutralizes static on plastics, webs, sheet stock and other surfaces, preventing tearing, jamming and hazardous shocks while sweeping away dust and particulate to improve line speed and product cleanliness.

Applications

• Web and web cleaning
• Molding machinery
• Sheeters and trimmers
• Parts cleaning and handling
• Pre-paint dust removal
• Shrink wrapping
• Package cleaning
• Bag opening and fill operations
• Printing equipment

Advantages

• Up to 34% improved ionizing performance versus previous designs
• Armored, electromagnetically shielded cable with integrated ground
• Durable stainless-steel connections to power supply
• Modular power-supply cable for easier routing
• Low compressed-air consumption with uniform airflow across the length
• Quiet operation and low maintenance
• Effective neutralization up to 20 ft (6.1 m)
• Shockless, non-radioactive ionization
• Modular design enables unlimited system lengths of uninterrupted airflow
• Variable force and flow via shims and regulators

Models

• Gen4 Super Ion Air Knife — Super Air Knife with Gen4 Ionizing Bar assembly.
• Gen4 Super Ion Air Knife Systems — includes Gen4 Super Ion Air Knife plus Model 7960 Gen4 Power Supply (115V or 230VAC, 50/60Hz).
• Gen4 Super Ion Air Knife Kits — include Gen4 Super Ion Air Knife, Model 7960 Gen4 Power Supply, shim set, filter separator and pressure regulator (with coupler).

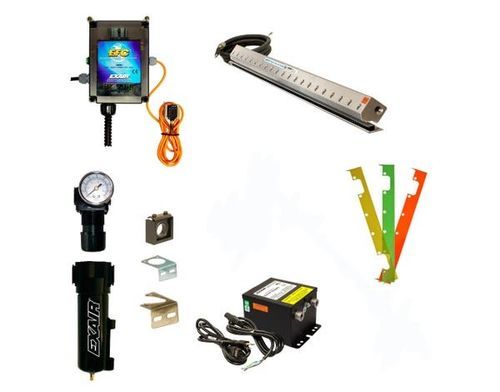

• Gen4 Deluxe Super Ion Air Knife Kits — include Gen4 Super Ion Air Knife, Model 7960 Gen4 Power Supply, EFC, Universal Air Knife Mounting System, shim set, filter separator and pressure regulator (with coupler).

Models / Part Numbers by Airflow Length
Airflow Length | Gen4 Super Ion Air Knife | Gen4 Super Ion Air Knife Systems | Gen4 Super Ion Air Knife Kit | Gen4 Deluxe Super Ion Air Knife Kit
3" (76 mm) : 112003 | 112103 | 112203 | 112203DX
6" (152 mm) : 112006 | 112106 | 112206 | 112206DX
9" (229 mm) : 112009 | 112109 | 112209 | 112209DX
12" (305 mm) : 112012 | 112112 | 112212 | 112212DX
18" (457 mm) : 112018 | 112118 | 112218 | 112218DX
24" (610 mm) : 112024 | 112124 | 112224 | 112224DX
30" (762 mm) : 112030 | 112130 | 112230 | 112230DX
36" (914 mm) : 112036 | 112136 | 112236 | 112236DX
42" (1067 mm) : 112042 | 112142 | 112242 | 112242DX
48" (1219 mm) : 112048 | 112148 | 112248 | 112248DX
54" (1372 mm) : 112054 | 112154 | 112254 | 112254DX
60" (1524 mm) : 112060 | 112160 | 112260 | 112260DX
72" (1829 mm) : 112072 | 112172 | 112272 | 112272DX
84" (2134 mm) : 112084 | 112184 | 112284 | 112284DX
96" (2438 mm) : 112096 | 112196 | 112296 | 112296DX
108" (2743 mm) : 1120108 | 1121108 | 1122108 | 1122108DX

Performance (per foot of length)
Pressure (PSIG / BAR) | Air Consumption (SCFM / SLPM) | Sound Level (dBA) | Dissipates 5kV (seconds) at 6" (152 mm) from target
5 PSIG / 0.3 BAR : 3.7 SCFM / 105 SLPM | 39 dBA | 0.40 s
10 PSIG / 0.7 BAR : 5.5 SCFM / 156 SLPM | 51 dBA | 0.33 s
20 PSIG / 1.4 BAR : 13.2 SCFM / 372 SLPM | 57 dBA | 0.26 s
40 PSIG / 2.8 BAR : 20.4 SCFM / 576 SLPM | 61 dBA | 0.23 s
60 PSIG / 4.1 BAR : 27.6 SCFM / 780 SLPM | 65 dBA | 0.21 s
80 PSIG / 5.5 BAR : 34.8 SCFM / 984 SLPM | 69 dBA | 0.20 s
100 PSIG / 6.9 BAR : 42.0 SCFM / 1,188 SLPM | 72 dBA | 0.18 s

Specifications

• Available nominal lengths: 3", 6", 9", 12", 18", 24", 30", 36", 42", 48", 54", 60", 72", 84", 96", 108" (76 mm to 2743 mm). Special lengths and unlimited system lengths available (factory options not included here).
• Cable: 5' length armored, electromagnetically shielded cable with ground and assembled bayonet connector.
• Power supply: EXAIR Model 7960 or 7961 Gen4 Power Supply (5 kV) required. Selectable input voltage (115VAC or 230VAC), modular power cord, lighted power switch and integrated primary fuse.
• Compressed air: 1/4 NPT outlets provided on each end and bottom of the Super Air Knife; multiple inlets required for longer knives (plumbing kits recommended for 24" and longer).
• Electrical: For use with 5 kVrms, 5 mA (max) power supply. Gen4 Ionizing Bars are shockless (less than 40 µA short circuited). Do not use near flammable materials or gases.
• Materials: metal parts — aluminum; plastic parts — UL 94 HB; emitters — stainless steel.
• Maximum ambient temperature: 165°F (74°C).

Features / Technical specifications

• Product type: Gen4® Deluxe Super Ion Air Knife™ Kit
• Includes: Gen4 Super Ion Air Knife, Gen4 power supply (Model 7960), Electronic Flow Control (EFC), Universal Air Knife Mounting System, shim set, filter separator and pressure regulator (with coupler)
• Example SKU (36" deluxe kit): 112236DX
• Performance: air consumption and ion dissipation times vary with supply pressure (see Performance table above)
• Maximum effective neutralizing distance: up to 20 ft (6.1 m)
• Emitter material: stainless steel
• Power: requires Gen4 power supply (5 kV)
• Installation: 1/4 NPT compressed air inlets; multiple inlets and plumbing kits recommended for 24" and longer installations
