Bench-top ionizer 8600

Overview

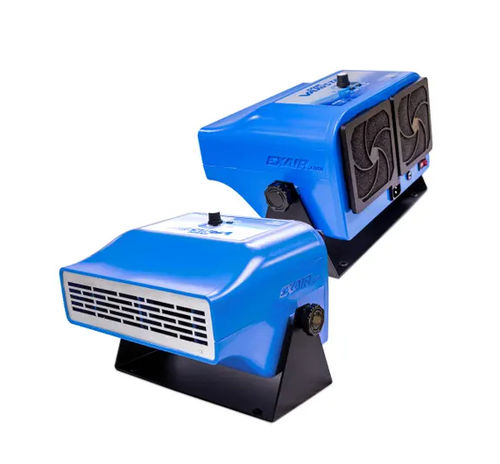

The EXAIR Varistat Benchtop Ionizer is a fan-driven static eliminator designed to neutralize static charges on surfaces in demanding industrial settings without the need for compressed air. It provides continuous ion-balanced airflow for hands-free operation on workbenches and equipment, and is manually adjustable for full coverage static elimination. Capable of reducing 1000 volts to 100 volts in 0.8 seconds (measured 12" from charged area with fans at high speed). Options include adjustable stand for mounting, selectable input voltage, variable fan speed and adjustable polarity.

Applications

• Web cleaning
• Electronics assembly
• Molding machinery
• Slitting, sheeting, winding
• Cleaning parts
• Shrink wrappers
• Package cleaning
• Printing equipment
• Benchtop assembly

Advantages

• Mountable, hands-free operation
• Rapid static decay
• Low voltage operation
• OSHA-safe air outlet and noise level
• Meets OSHA pressure requirements
• LED indicators for proper and improper functionality

Features / Options

• Fan-driven ionizing airflow (no compressed air required)
• Manually adjustable fan speed
• Adjustable polarity (plus and minus buttons)
• Selectable input voltage (120-240 VAC, 50/60 Hz)
• Includes mounting bracket for hands-free operation
• Two replaceable foam filters (30 ppi)

Technical specifications

• Certifications: UL Listed; RoHS and CE compliant
• Input Voltage: 120-240 VAC, 50/60 Hz - selectable
• Input Current: 0.6 A / 0.4 A
• Emitter Voltage: 5-7 kV
• Balance: ±100 V, manually adjustable to <10 V
• Dimensions: 13 1/2 in. x 10 1/2 in. x 10 in. (342.9 mm x 266.7 mm x 254 mm)
• Weight: 9.1 lbs (4.13 kg)
• Air Output: 10" x 1.5" (254 mm x 38.1 mm) - covers up to 16" x 10' (406.4 mm x 3048 mm) area
• Filter: Two replaceable foam filters, 30 ppi
• Static Discharge: 0.8 seconds to discharge 1000 V to 100 V (measured 12" from charged area with fans at high speed)
• Sound Level: 67 dBA measured 3' in front of unit with fans at high speed
• Indicator LEDs: Middle green LED indicates unit is on; blue LEDs indicate balance adjustment positive and negative; red LED (above green) flash codes — 2 flashes: Electrical Failure; 3 flashes: Control Board Malfunction; 4 flashes: Fan Malfunction
