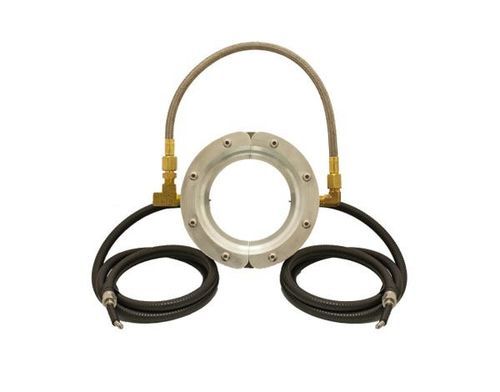

Ion air wipe system Model 8264 Gen4 Super

industrial

Overview
EXAIR's Gen4® Super Ion Air Wipe™ Systems include the Model 7960 Gen4 Power Supply. The Gen4 Super Ion Air Wipe provides a uniform 360° ionized airstream that is easy to clamp around a part for eliminating static electricity and contaminants. It is ideal for use on pipe, cable, extruded shapes, hose, wire and more. The high volume, high velocity flow attaches itself to the surface and wipes it down with static eliminating ions. The airflow stays attached to the surface and is effective far away from where the Gen4 Super Ion Air Wipe is mounted. An optional pressure regulator provides infinite control of the air volume and velocity.

Applications

• Clean and neutralize extrusions
• Neutralizing pipe, tubing, wire
• Cleaning molded parts
• Neutralizing static for quality printing
• Pre-paint dust removal
• Remove chips, shavings and sawdust
• Container neutralization

Advantages

• Low air consumption
• Rapid static decay
• Quiet
• Non-contact operation
• Effective up to 15 feet (4.6 m)
• Shockless, non-radioactive
• Compact, rugged, easy to install
• No moving parts - low maintenance
• Variable force and flow

Models
Super Ion Air Wipes are available in three different model types:

• Super Ion Air Wipe - includes the Super Ion Air Wipe and 5' (1.52 m) armor shielded cable.
• Super Ion Air Wipe Systems - include a Super Ion Air Wipe and Model 7960 Power Supply (115 VAC/230 VAC, 50/60 Hz).
• Super Ion Air Wipe Kits - include a Super Ion Air Wipe, Model 7960 Power Supply, shim set, filter separator and pressure regulator (with coupler).

Models / Part Numbers (by Diameter)
Diameter | Super Ion Air Wipe | Super Ion Air Wipe Systems | Super Ion Air Wipe Kit
2" (51 mm) | 8162 | 8262 | 8462
4" (102 mm) | 8164 | 8264 | 8464

Performance (summary)
Model | Air Consumption (SCFM) | Air Consumption (SLPM) | Sound Level (dBA) | Dissipates 5 kV (seconds)
8162 | 29.5 SCFM | 835 SLPM | 77 dBA | 0.20 s
8164 | 50.2 SCFM | 1,422 SLPM | 81 dBA | 0.20 s
* Performance tested at 80 PSIG (5.5 BAR); dissipates measured at 12" (305 mm) from target.

Accessories (included / available)

• Power Supply (Model 7960/7961) - selectable voltage (115 VAC or 230 VAC). Modular cable with electromagnetic shielding, integrated primary fuse, lighted power switch. UL Component Recognized (U.S. & Canada), CE and RoHS compliant.
• Shim Sets - .002" (0.05 mm) stainless steel shim installed; additional shims available to increase gap, force and flow. Shim sets included with kits or available separately.

Caractéristiques / spécifications techniques

• Cable: 5' (1.52 m) length of armored, electromagnetically shielded cable is included.
• Power Supply: EXAIR Model 7960 or 7961 Power Supply (5 kV) required for operation; supplies include modular 6' (1.83 m) power cord, lighted power switch, integrated fuse on the primary and multiple high voltage outlets.
• Compressed Air Connection: 1/4 NPT inlet.
• Electrical: For use with 5 kVrms, 5 mA (max) power supply.
• Electrical Hazard: Shockless (less than 40 microamperes short circuited). Do not use near flammable materials or gases.
• Materials of Construction - Metal parts: Aluminum.
• Materials of Construction - Plastic parts: UL rated 94 HB.
• Emitters: Stainless steel.
• Maximum ambient temperature: 165°F (74°C).
• Effective range: ionized airflow effective up to approx. 15 feet (4.6 m) depending on conditions.
• Typical air consumption and sound levels provided per model (see Performance section).
