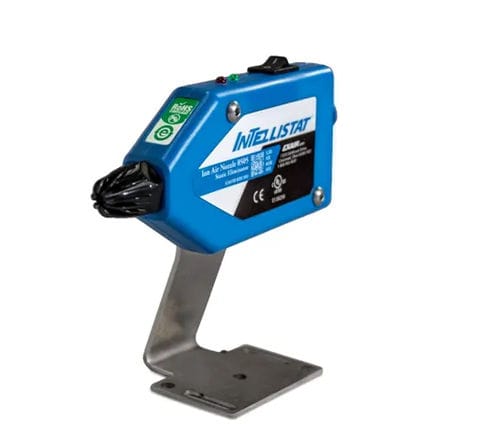

Ionizing air nozzle Model 8505 Intellistat

blow-offionizingpolycarbonate

Description
The patented† Intellistat® Ion Air Nozzle produces ionized compressed air to neutralize static and remove troublesome particulates during clean processes, test procedures and sensitive assembly work. With a ±30 volt balance the Intellistat is designed to use minimal compressed air while delivering precise blow-off and exceptional static decay rates capable of reducing 1000 volts to less than 100 volts in under one second. A low-voltage transformer converting 120V or 240V to 24V assures electrical safety. Includes a compact stainless steel adjustable mounting bracket for benchtops and machine frames to provide hands-free operation. Features a 6 mm push-in air connection and green and red LEDs that indicate proper functionality. Constructed of durable dissipative polycarbonate for applications requiring non-conductivity. The ionized compressed air and design are appropriate for sterile environments such as laboratories, clean rooms, or scientific testing facilities. Patent Numbers: EU Regd. Des. No. 009025463-0001; UK Registered Design No. 6211314.

Applications

• Precision parts assembly
• Maintain charge neutrality in laboratory processes
• Remove particles from parts and surfaces in clean environments
• Printed circuit board manufacturing
• Maintain cleanliness during electronics manufacturing, assembly and testing
• Eliminate electrostatic discharge
• Remove debris from medical products
• Clean glass containers, slides and lenses

Advantages

• Mountable, hands-free operation
• Rapid static decay
• Low voltage operation (24 V via supplied transformer)
• Quick change emitter point
• OSHA-safe air outlet design
• LED indicators for proper and improper functionality

Accessories

• Model 902067 Replacement 24V Power Supply for the Intellistat Ion Air Nozzle (included with the Intellistat Ion Air Nozzle).
• Compressed air tubing available in lengths: 10 ft, 20 ft, 30 ft, 40 ft and 50 ft (models 902196-10, 902196-20, 902196-30, 902196-40, 902196-50).

Performance
Intellistat Ion Air Nozzle Performance
PSIG | BAR | SCFM | SLPM | dBA
30 | 2.1 | 2.7 | 76.46 | 76
80 | 5.5 | 5.8 | 164.21 | 81

Intellistat Ion Air Nozzle Force / Discharge Time (12" from target for force; discharge rate taken from 1" away)
Pressure Supply (PSIG | BAR) | Force (LBS | OZ | GRAMS) | Discharge Time (Seconds) for 1000V→100V and 5000V→500V
30 | 2.1 | 0.02 LBS / 0.32 OZ / 9.1 g | 1.2 sec (1000V→100V) ; 1.2 sec (5000V→500V)
80 | 5.5 | 0.1 LBS / 1.6 OZ / 45.4 g | 0.6 sec (1000V→100V) ; 0.6 sec (5000V→500V)

How it works (summary)
After connecting the 24V power supply and activating the power switch, apply clean dry compressed air or nitrogen to the 6 mm push-in fitting to generate ionized air and airflow. Proper or improper functionality is indicated by green or red LEDs. The non-marring nozzle provides quiet performance and OSHA compliance. The compact mounting bracket enables hands-free operation.
