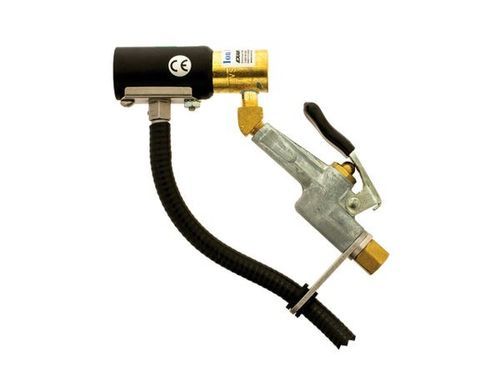

Cleaning air gun Model 8193 Gen4®

aluminumcompactsoundproof

Description
EXAIR's handheld Gen4® Ion Air Gun combines portability, exceptionally fast static decay rates and low compressed air consumption to efficiently remove static electricity, contaminants and dust from three-dimensional parts prior to assembly, packaging, painting or finishing. The Gen4® Ion Air Gun neutralizes static and cleans surfaces reliably.

Applications

• Bag opening - form and fill
• Cleaning and neutralizing parts
• Neutralizing shrink wrap
• Cleaning molded parts
• Removing static on assemblies
• Neutralizing slitting operations
• Package cleaning
• Container neutralization

Advantages

• Low air consumption
• Rapid static decay
• Quiet operation
• Effective up to 15 feet (4.6 m)
• Shockless, non-radioactive
• Compact, rugged, easy to install
• Intake can be ducted
• No moving parts - low maintenance
• Variable force and flow

Models

• Ion Air Gun - includes the Ion Air Gun and 10' (3 m) of armored and electromagnetically shielded cable.
• Ion Air Gun System - includes an Ion Air Gun and Model 7960 Selectable Voltage Power Supply (115 VAC/230 VAC, 50/60 Hz).
• Ion Air Gun System with Filter - includes the Ion Air Gun System and Filter Separator.
• Ion Air Gun Kit - includes an Ion Air Gun, Model 7960 Power Supply, filter separator and pressure regulator (with coupler).

Model Reference Table
Model | 8193 | 8293 | 8393 | 8493
Type | Ion Air Gun | Ion Air Gun System | Ion Air Gun System with Filter | Ion Air Gun Kit

Performance (at 6" / 152mm from target)
Pressure (PSIG) | BAR | Air Consumption (SCFM) | Air Consumption (SLPM) | Sound Level (dBA) | Dissipates 5kV (Seconds)
20 | 1.4 | 7.4 | 209 | 67 | 0.45
40 | 2.8 | 11.5 | 325 | 74 | 0.33
60 | 4.1 | 15.8 | 447 | 79 | 0.24
80 | 5.5 | 22.0 | 622 | 82 | 0.18
100 | 6.9 | 24.0 | 679 | 85 | 0.18

Technical specifications

• Model / SKU: 8193 (Ion Air Gun, includes 10' armored and electromagnetically shielded cable)
• Power Supply: EXAIR Model 7960 or 7961 Power Supply (5 kV) required for Ion Air Gun operation; power supplies equipped with 6' (1.83 m) power cord, lighted power switch and multiple high voltage outlets
• Compressed Air: 1/4 NPT inlet
• Electrical: For use with 5 kVrms, 5 milliamperes (max) power supply
• Electrical Hazard: Shockless (less than 40 microamperes short circuited). Do not use near flammable materials or gases.
• Materials of Construction: Metal parts - aluminum; Plastic parts - UL rated 94 HB; Emitter - stainless steel
• Maximum ambient temperature: 165°F (74°C)
