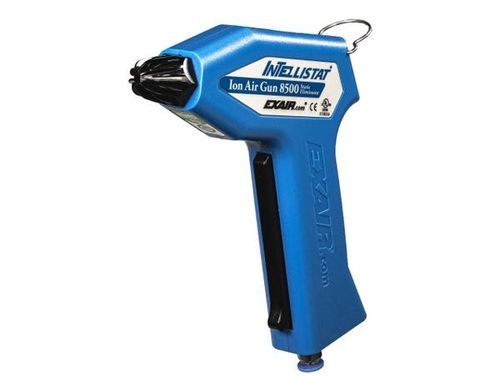

Ionizing air gun Model 8500 Intellistat

lightweightergonomicfor clean rooms

Description The patented† Intellistat® Ion Air Gun delivers ionized compressed air to neutralize static and remove particulates during clean processes, testing and sensitive assembly tasks. With a ±30 V balance and efficient air consumption, it reduces 1000 V to less than 100 V in under one second while minimizing blowoff volume. A low-voltage transformer (100–240 V, 50/60 Hz to 24 VDC) is included for electrical safety. The unit features an OSHA-safe nozzle, short-throw trigger, quick-change emitter point, LED status indicators and a lightweight, static-resistant polycarbonate housing suitable for sterile and controlled environments.

Applications

• Precision parts assembly and electrostatic control
• Laboratory procedures requiring charge neutrality
• Particle removal in cleanrooms and controlled environments
• Printed circuit board manufacturing and inspection
• Electronics production and final assembly
• Prevention of electrostatic discharge during handling
• Debris removal from medical components
• Cleaning of glassware, slides and optical lenses

Advantages

• Rapid static decay (±30 V balance)
• Low-voltage, safe operation (24 VDC power supply included)
• Quick-change emitter for simplified maintenance
• Short-throw, ergonomic trigger for precise ionization
• Lightweight design for extended use (under 200 g)
• OSHA-safe air outlet design
• LED indicators for functional status
• Meets ISO 14644-1 Class 5 for cleanroom operations

Accessories

• Model 902067 Replacement 24V Power Supply (included with Intellistat Ion Air Gun)
• Compressed air tubing, available 10–50 ft: Models 902196-10, -20, -30, -40, -50

Performance Intellistat Ion Air Gun Performance
Pressure Supply / Air Consumption / Sound Level
30 PSIG (2.1 BAR) / 2.7 SCFM (76.46 SLPM) / 76 dBA
80 PSIG (5.5 BAR) / 5.8 SCFM (164.21 SLPM) / 81 dBA

Force / Discharge Time Intellistat Ion Air Gun Force / Discharge Time (12" / 305 mm from target; discharge rate measured at 1"):
At 30 PSIG (2.1 BAR): Force 0.02 lbs (0.32 oz / 9.1 g) — Discharge Time: 1.2 s (1000 V to 100 V), 1.2 s (5000 V to 500 V)
At 80 PSIG (5.5 BAR): Force 0.1 lbs (1.6 oz / 45.4 g) — Discharge Time: 0.6 s (1000 V to 100 V), 0.6 s (5000 V to 500 V)

Specifications

• Certifications: UL Listed; CE and RoHS compliant
• Power Supply Input: 100–240 V, 50/60 Hz, 0.7 A max
• Power Supply Output: EXAIR Model 902067 (24 VDC, 1.0 A max) required and included
• Electrical: For use with 5 kVrms, 5 mA (max) power supply
• Electrical Hazard: Shockless (under 40 µA short‑circuited). Do not use near flammable materials or gases.
• Balance: ±30 V
• Hand Unit Size: 6-3/8" W x 6-3/4" L x 1" H
• Hand Unit Weight: 0.42 lbs (under 200 g)
• Materials: Static-resistant (dissipative) polycarbonate
• Emitter: Stainless steel
• Gas Input: 30–125 PSIG clean dry compressed air or nitrogen
• Operating Temperature: 32°F to 105°F (0°C to 41°C)
• Air Connection: 6 mm tube
• Clean Room Classification: ISO 14644-1 Class 5 operational
• Patents: US Pat. D903817; EU Regd. Des. No. 00770318-0001; Mexico No. 60723; Canada No. 194141 (EXAIR Corporation)
